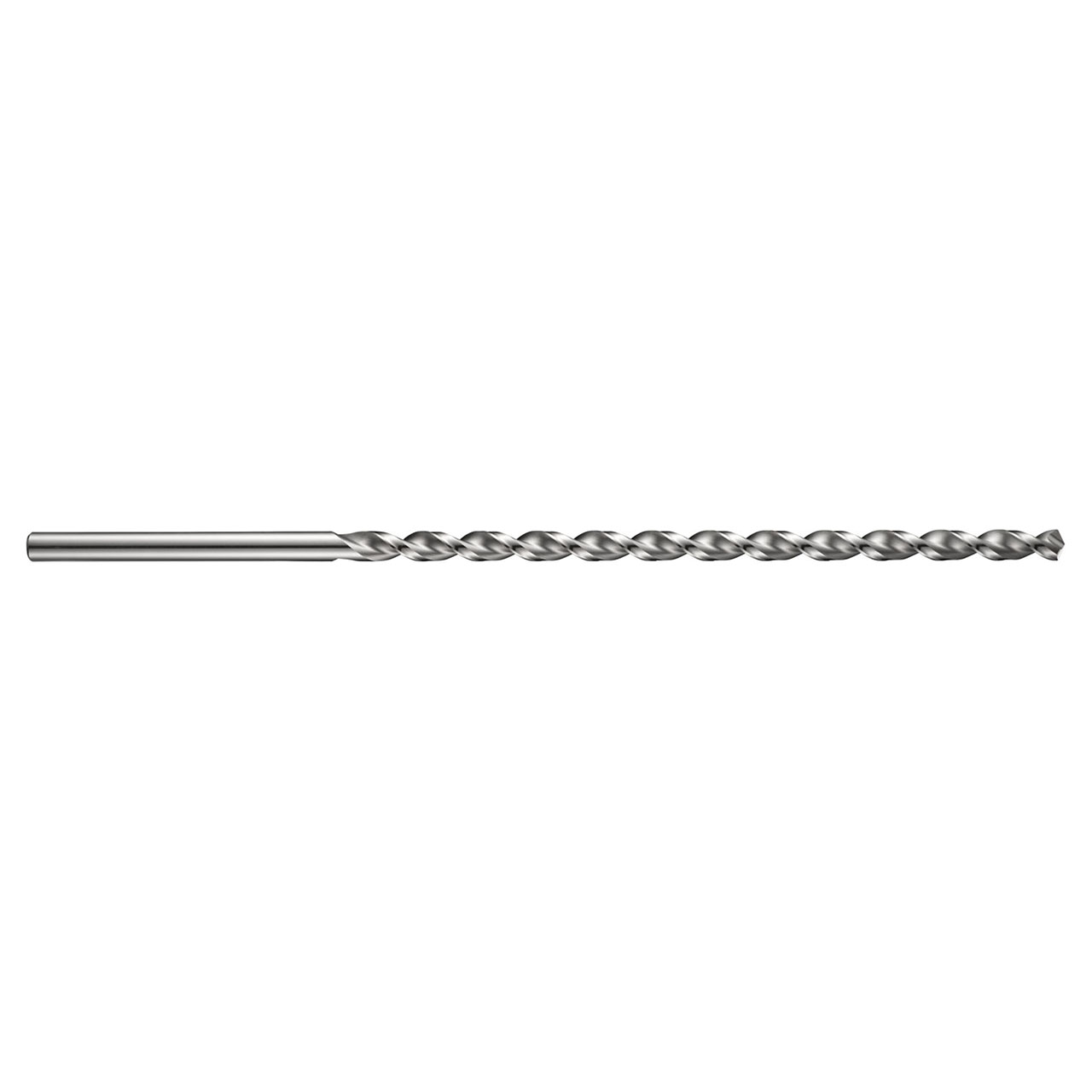

The A977 extra long series PFX drill comes in metric diameters from 1.50mm to 14.00mm. The PFX series of drills have a specially designed parabolic flutes which eliminates the need to drill deep holes in short steps (pecking), so even extra deep holes can be drilled in a single pass. The drills have a bright finish which helps stop workpiece material from sticking to the cutting edge. Made from premium High Speed Cobalt, the drills can be used to drill a number of materials including steels, stainless steels and aluminium. The A977 has a 130° point which helps with self-centering and also means less force is needed to drill the hole. The A977 drills are recommended for drilling very deep holes and in applications where extra reach is needed.
| EDP Number | 0148761 |
| Usable Length | 20 |
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 10.2362" |
| Point Angle | 130 |
| Material Code | HSS-E |
| Drill Length | Extra Length |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
