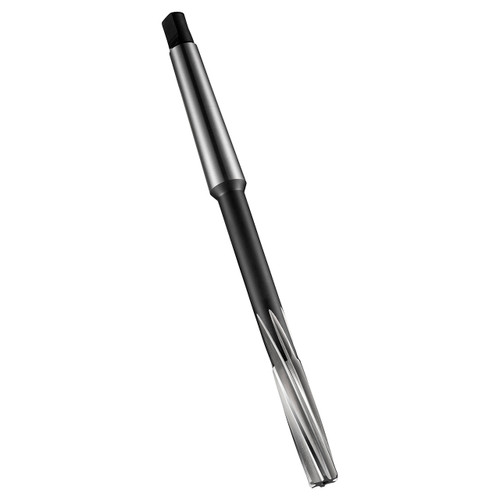

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 20.00mm with an overall length of 228mm, a flute length of 60mm and 148mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0049853 |
| Flute Count | 8 |
| Cutting Diameter (Inch) | 0.7874" |
| Body Length (mm) | 148mm |
| Overall Length (Inch) | 8.9764" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
25/32"
Reamer Diameter (Decimal Inch):
0.7874"
Reamer Diameter (mm):
20mm
Overall Length (Inch):
8-31/32"
Overall Length (Decimal Inch):
8.9764"
Overall Length (mm):
228mm
Flute Length (Inch):
2-23/64"
Flute Length (Decimal Inch):
2.3600"
Flute Length (mm):
60mm
Material:
HSS-E
Finish/Coating:
Bright
