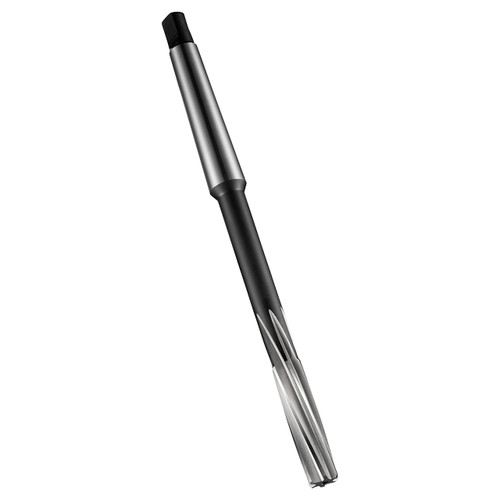

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 32.00mm with an overall length of 317mm, a flute length of 77mm and 193mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0049938 |
| Flute Count | 10 |
| Cutting Diameter (Inch) | 1.2598" |
| Body Length (mm) | 193mm |
| Overall Length (Inch) | 12.4803" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
1-17/64"
Reamer Diameter (Decimal Inch):
1.2598"
Reamer Diameter (mm):
32mm
Overall Length (Inch):
12-31/64"
Overall Length (Decimal Inch):
12.4803"
Overall Length (mm):
317mm
Flute Length (Inch):
3-1/32"
Flute Length (Decimal Inch):
3.0300"
Flute Length (mm):
77mm
Material:
HSS-E
Finish/Coating:
Bright
