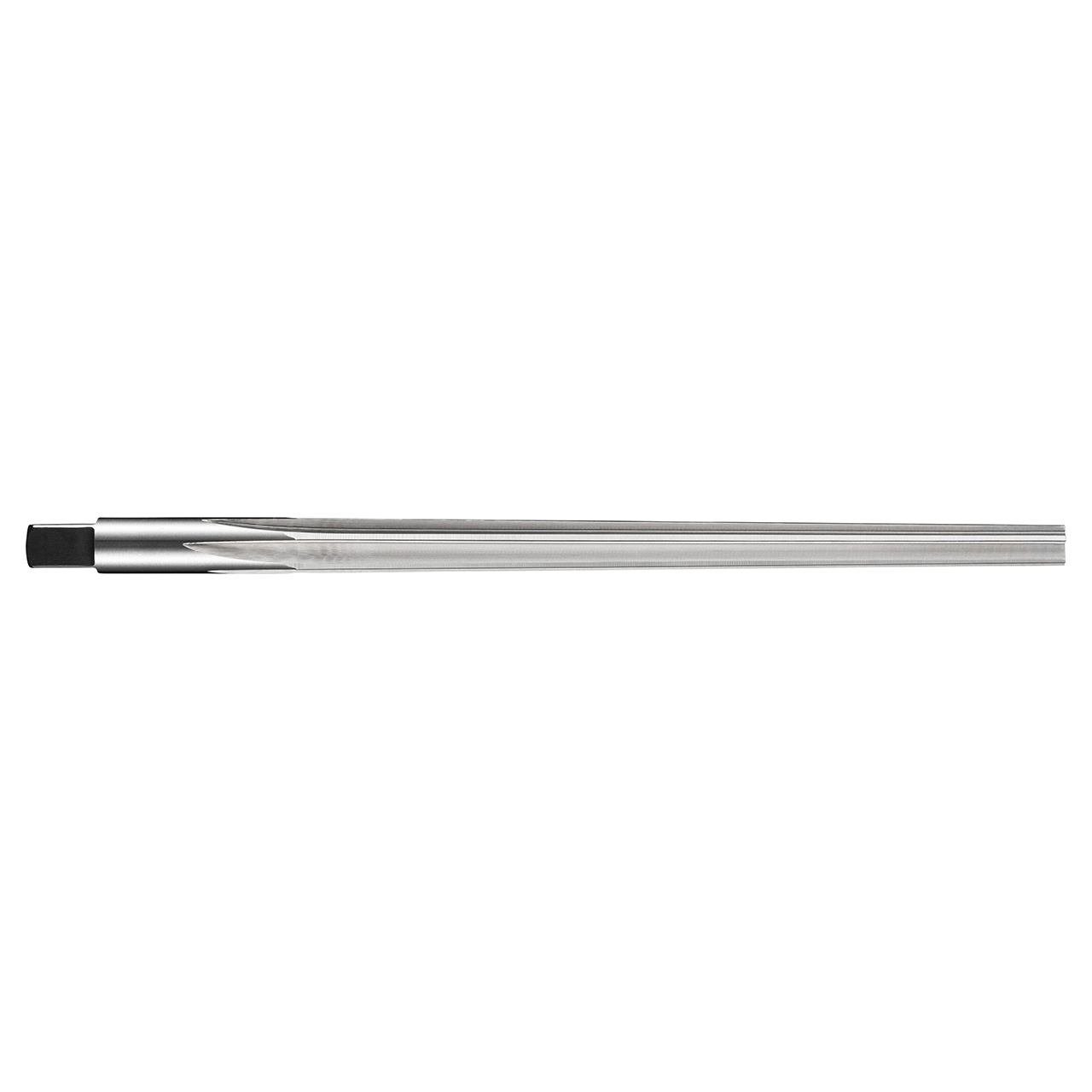

Taper pin hand reamer with straight flutes and a square drive, small end diameter 4.64mm with an overall length of 117mm and a flute length of 86mm 6.43mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 1/4" taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0182376 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.2531" |
| Overall Length (Inch) | 4.6063" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
1-17/64"
Flute Length (Decimal Inch):
1.2600"
Flute Length (mm):
32mm
Overall Length (Inch):
1-49/64"
Overall Length (Decimal Inch):
1.7717"
Overall Length (mm):
45mm
Material:
HSS-E
Finish/Coating:
Bright/ST
