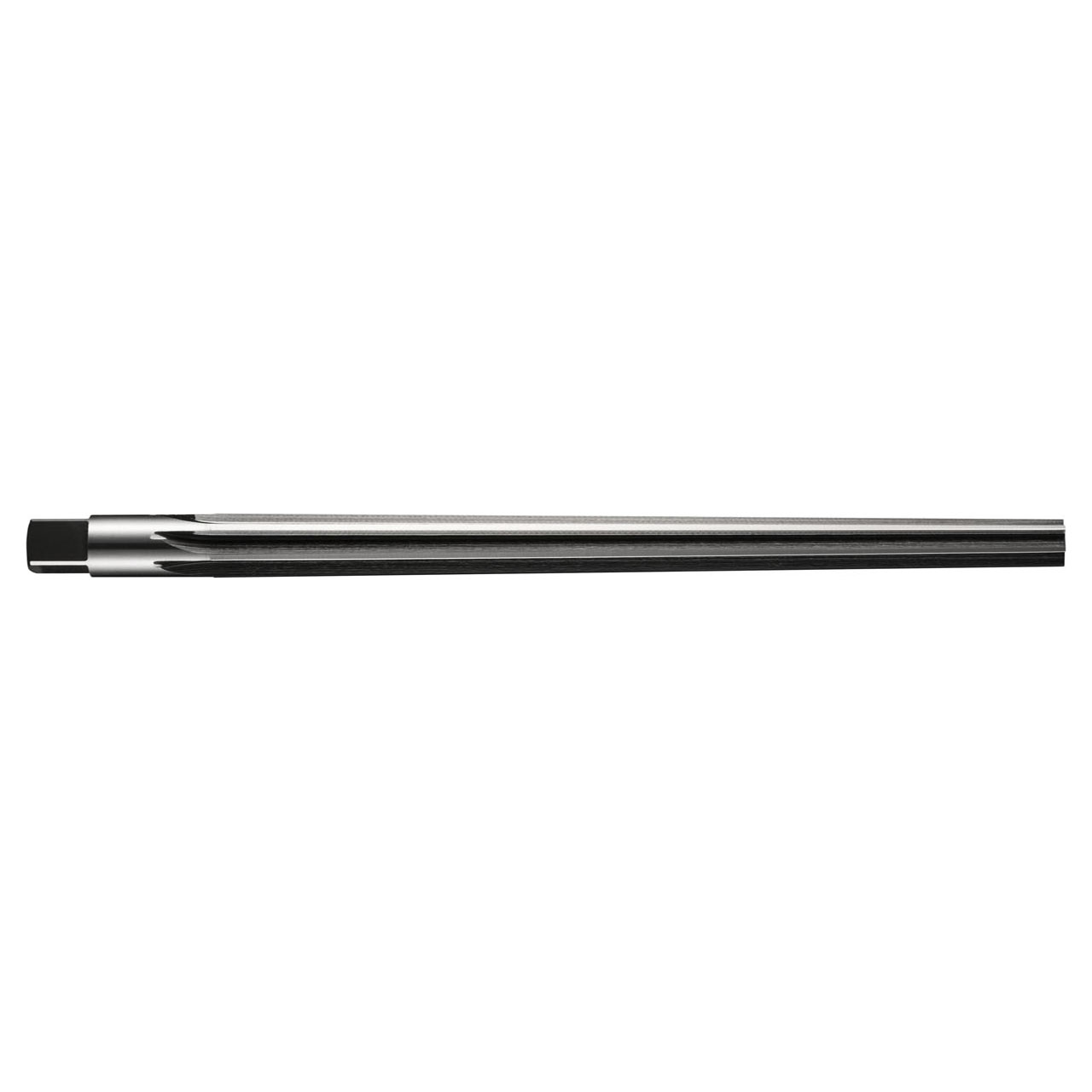

Taper pin hand reamer with straight flutes and a square drive, small end diameter 9.90mm with an overall length of 215mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0182574 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.5236" |
| Overall Length (Inch) | 8.4646" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
12-19/32"
Flute Length (Decimal Inch):
12.6000"
Flute Length (mm):
320mm
Overall Length (Inch):
18-45/64"
Overall Length (Decimal Inch):
18.7008"
Overall Length (mm):
475mm
Material:
HSS-E
Finish/Coating:
Bright
