Dormer B41115.0 | 0.5906" Diameter x 8.0315" OAL Bright Coated Chucking Reamer

$339.15
Brand:
Dormer
Reamer Diameter (Inch):
19/32"
Reamer Diameter (Decimal Inch):
0.5906"
Reamer Diameter (mm):
15mm
Overall Length (Inch):
8-1/32"
Overall Length (Decimal Inch):
8.0315"
Overall Length (mm):
204mm
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9700"
Flute Length (mm):
50mm
Material:
HM
Finish/Coating:
Bright
SKU:
10114739
Weight:
10.58 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

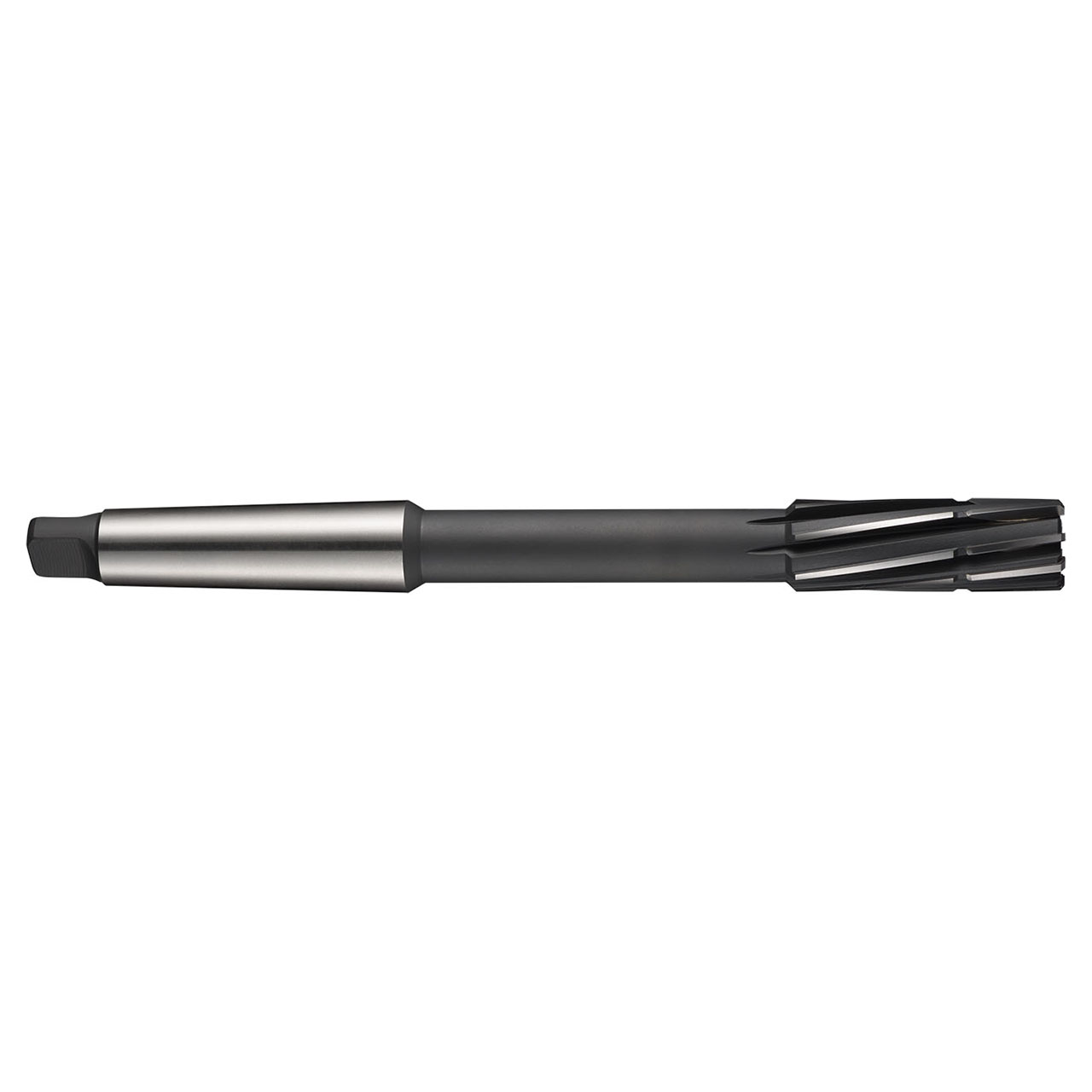

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 15.00mm with an overall length of 204mm, a flute length of 50mm and 124mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0053171
Flute Count8
Cutting Diameter (Inch)0.5906"
Body Length (mm)124mm
Overall Length (Inch)8.0315"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
