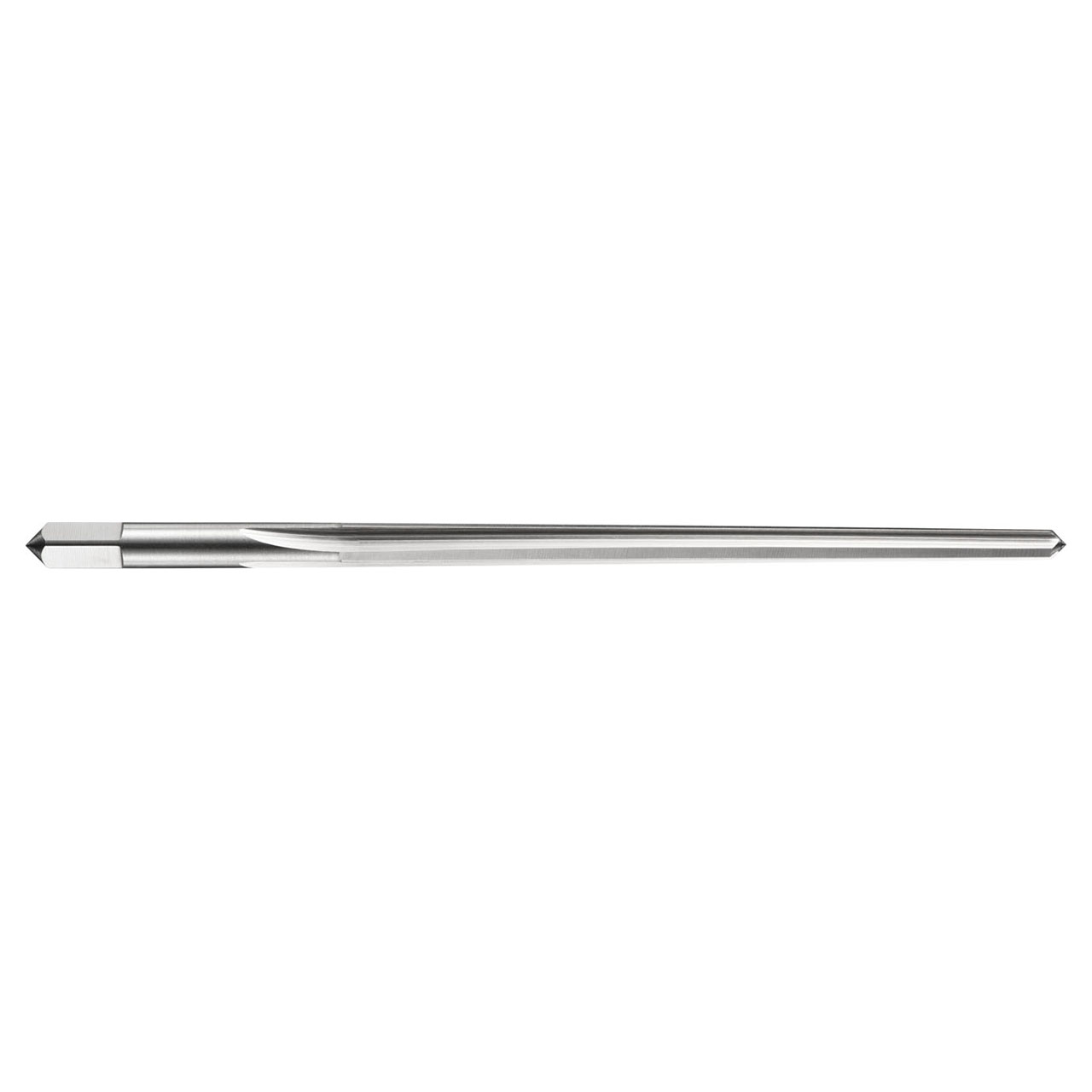

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 1.40mm with an overall length of 57mm, a flute length of 37mm and 2.14mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 1.50mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0140918 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.124" |
| Overall Length (Inch) | 2.2441" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
1-57/64"
Flute Length (Decimal Inch):
1.8900"
Flute Length (mm):
48mm
Overall Length (Inch):
3-25/64"
Overall Length (Decimal Inch):
3.3858"
Overall Length (mm):
86mm
Material:
HSS-E
Finish/Coating:
Bright
