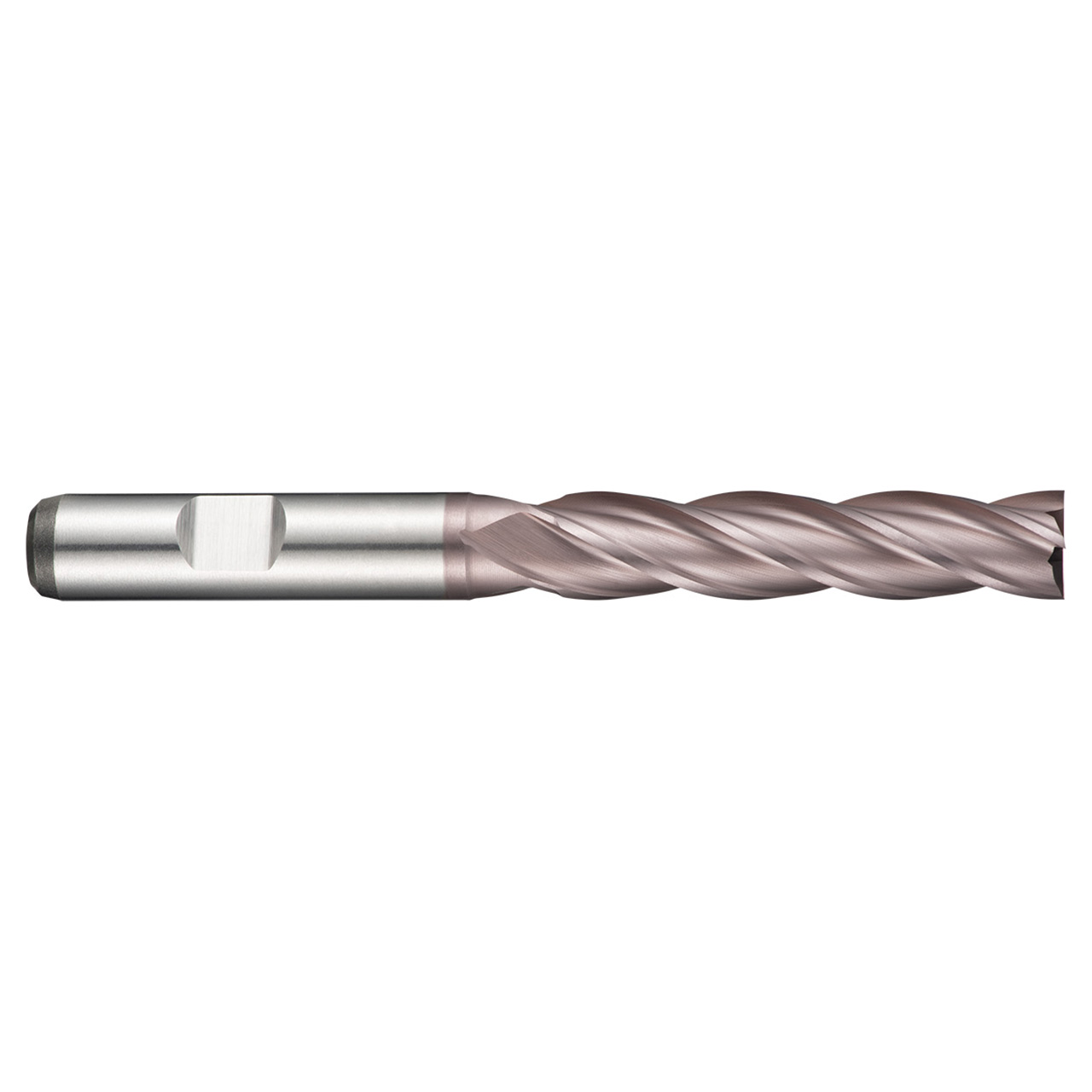

Dormer C2953.0 | 0.1181" Diameter x 2.2047" OAL 4 Flute TiCN Coated Square End Mill

$50.22
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140113
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C295 4-flute milling cutters have a titanium carbo nitride coating which extends the service life of the tool and improved performance when milling hard and abrasive materials. The powder metal high speed cobalt used in manufacture provides superior performance and extended tool life.C295 milling cutters have a strong design so they can be used for profile milling on CNC machines and are very versatile, as they are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels, whilst the long series flute design provides high rigidity for finishing deep profiles.


Product Specifications
Max Depth of Cut (mm)12mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)2.2047"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
