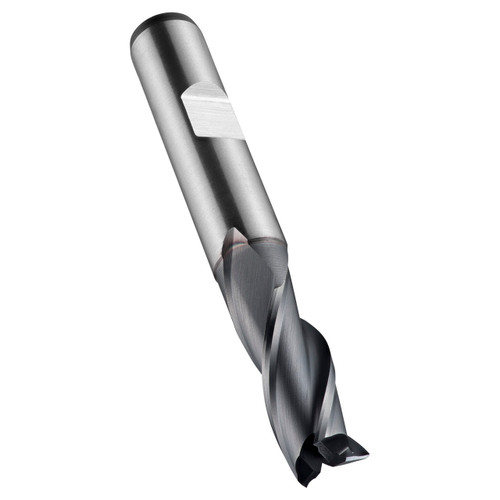

Dormer C3524.0 | 0.1575" Diameter x 2.1654" OAL 3 Flute ALCRONA Coated Slot Drill

$44.12
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114301
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C352 milling cutters have 3 flutes with a medium length flute design, giving high rigidity for milling standard slots. With very accurate diameters, they are designed for milling standard keyway slots to a P9 tolerance. The Alcrona coating increases the service life of the tool and improves performance when milling difficult to machine materials. C352 milling cutters are manufactured from powder metal high speed cobalt which gives improved performance and further extends tool life. C352 milling cutters have many different uses including plunging, ramping and profile milling in steels, stainless steels and cast iron.


Product Specifications
Max Depth of Cut (mm)11mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)2.1654"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
CoatingALCRONA
Surface ColorBlack-Deep Purple
