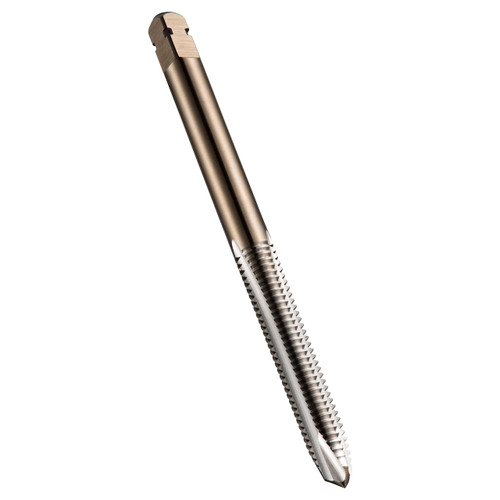

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.381" |
| Overall Length (Inch) | 2.9375" |
| No of Flutes | 2 |
| Usable Length (Inch) | 1.2915" |
| Thread Pitch (mm) | 1.5mm |
| Thread Diameter Size | 10 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Threading Length (Inch) | 0.602" |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
