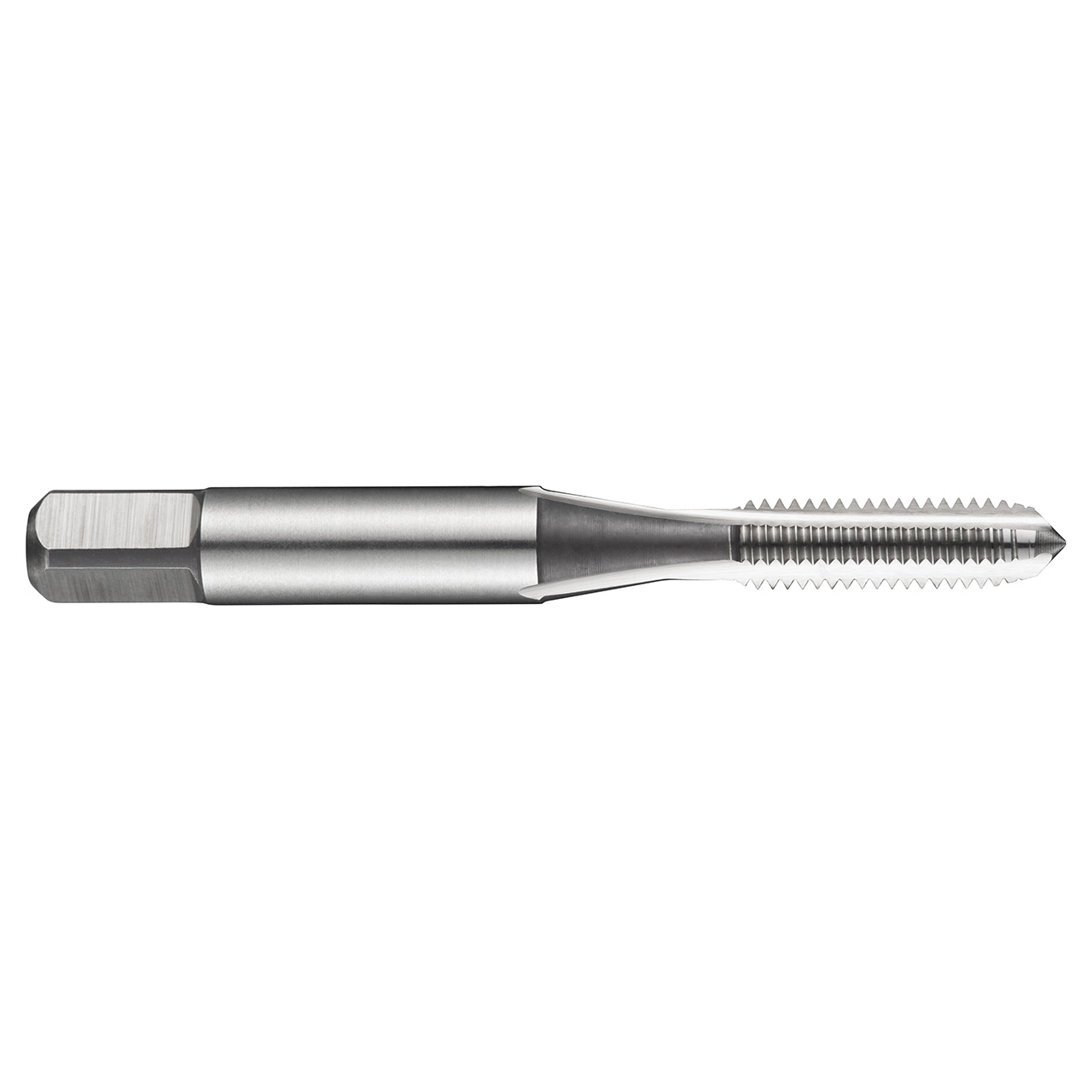

Set of straight flute serial taps NO8 for ISO-Metric thread M1.6 with 0.35mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to DIN 352 standard with 2.5mm shank and 2.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals.
Product Specifications
| Connection Diameter (Inch) | 0.0984" |
| Overall Length (Inch) | 1.2598" |
| Clamping Width (mm) | 2.1mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 0.35mm |
| Thread Diameter Size | 1.6 |
| Threading Length (mm) | 7mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
