Dormer E100M45NO8 | 1.4173" Diameter x 6.2992" OAL 6 Flute Bright Coated Tap Set

$1,143.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022054
UPC:
7320760079423
Weight:
127.69 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

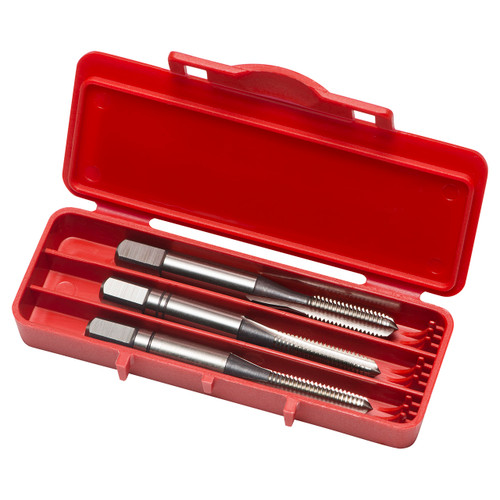

Set of straight flute serial taps NO8 for ISO-Metric thread M45 with 4.50mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to DIN 352 standard with 36.0mm shank and 29.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals.


Product Specifications
Connection Diameter (Inch)1.4173"
Overall Length (Inch)6.2992"
Clamping Width (mm)29mm
No of Flutes6
Thread Pitch (mm)4.5mm
Thread Diameter Size45
Threading Length (mm)65mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
