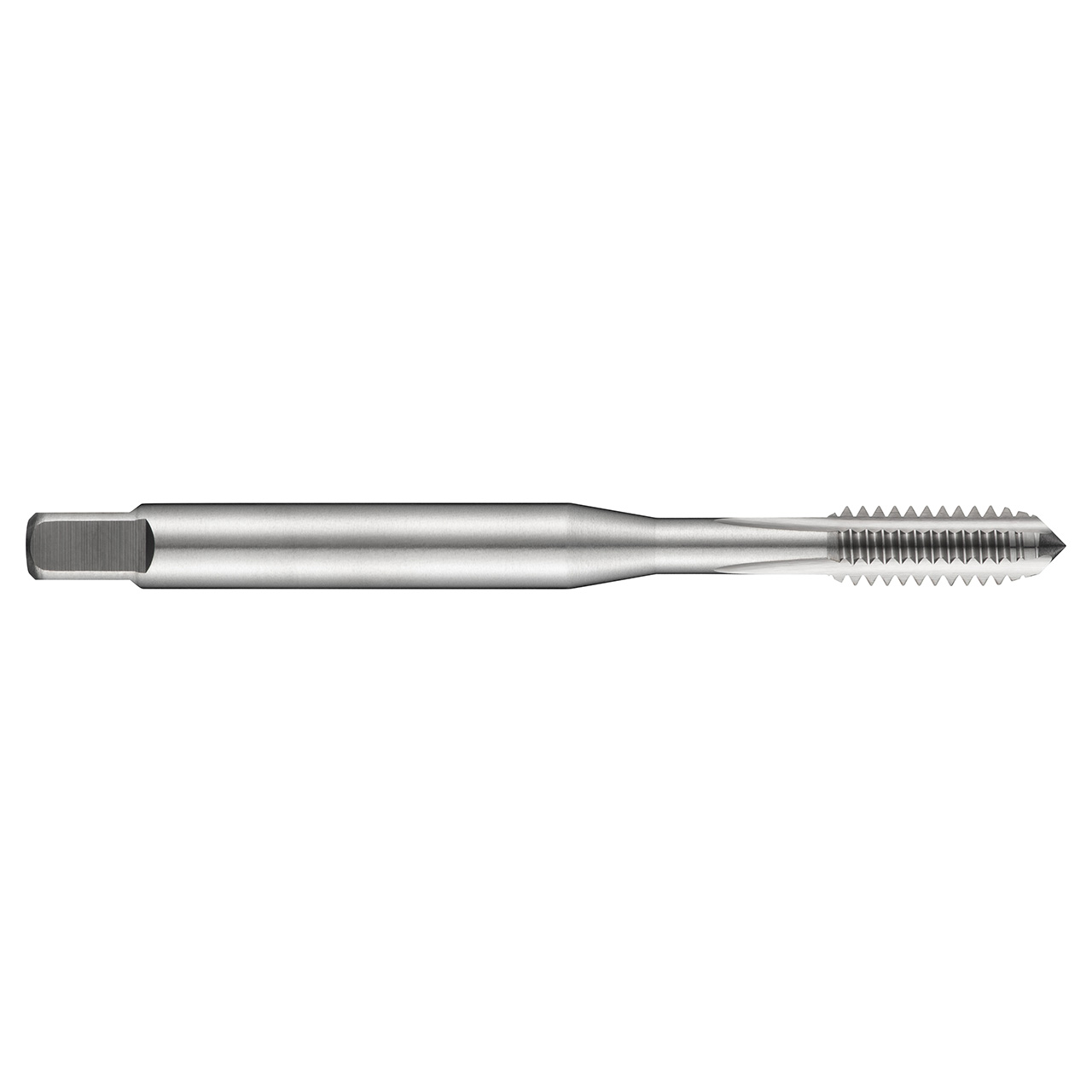

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 6 with 40 TPI and 2B class of fit, dimensions according to DIN 371 standard with 4.0mm shank and 3.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.1575" |
| Overall Length (Inch) | 2.2047" |
| Clamping Width (mm) | 3mm |
| Thread Diameter (mm) | 3.505mm |
| No of Flutes | 3 |
| Usable Length (mm) | 20mm |
| Clamping Length | 6 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 11mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UNF-Unified Fine |
