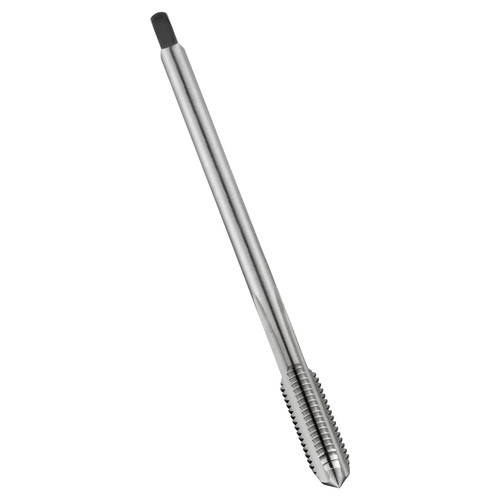

Straight flute tap with chamfer form A with a 6-8xP taper lead, for ISO-Metric thread M18 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.5512" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 11mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 2.5mm |
| Clamping Length | 14 |
| Thread Diameter Size | 18 |
| Threading Length (mm) | 30mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | A 6-8 / C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
