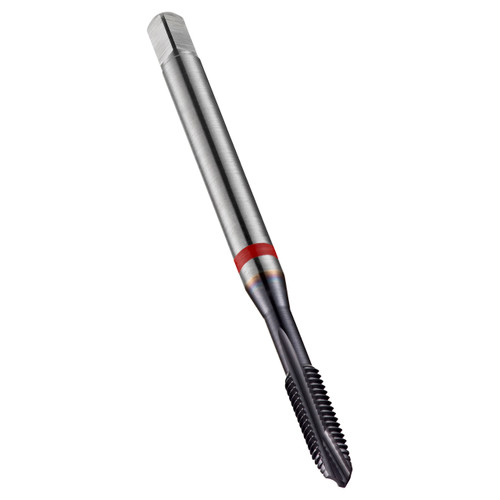

Dormer E256M4 | 0.1772" Diameter x 2.4803" OAL 3 Flute TiAlN/Top Coated Spiral Point Tap

$39.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026716
UPC:
7320760674352
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.4803"
Clamping Width (mm)3.4mm
No of Flutes3
Usable Length (mm)21mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
