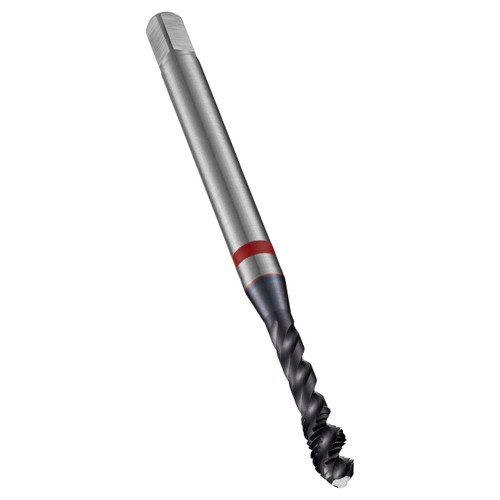

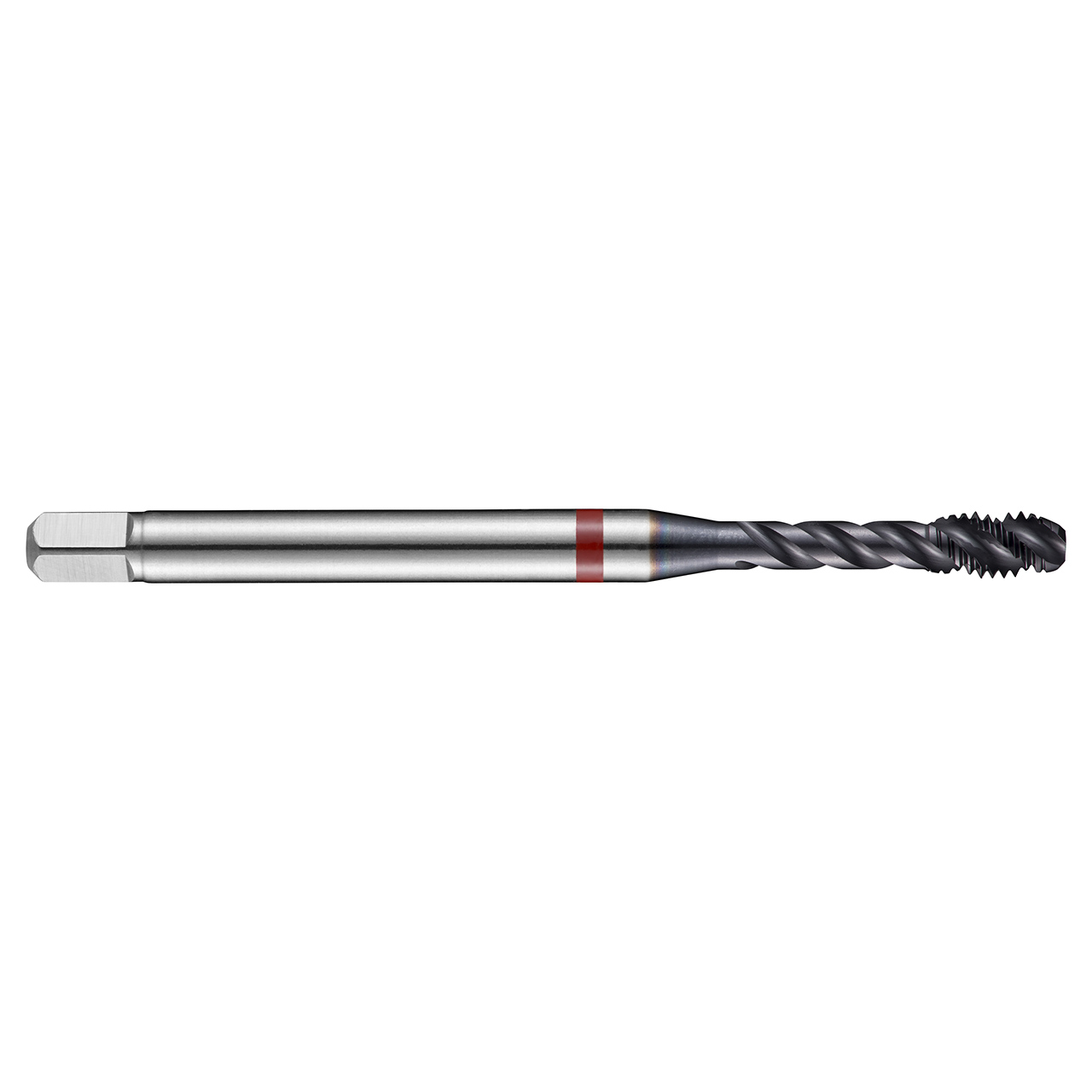

Dormer E261M8 | 0.315" Diameter x 3.5433" OAL 3 Flute TiAlN/Top Coated Spiral Flute Tap

$57.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026738
UPC:
7320760674574
Weight:
1.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
