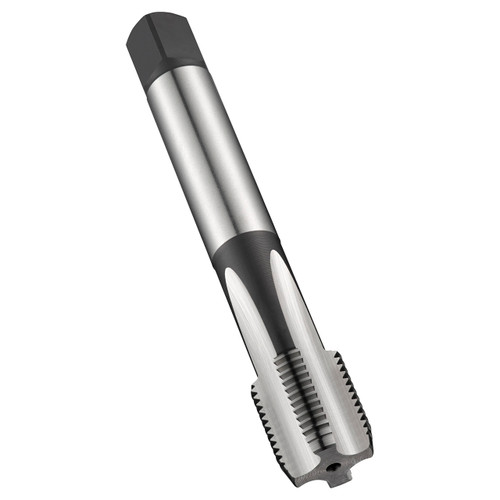

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 1.1/4" with 11 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 32.0mm shank and 24.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 1.2598" |
| Overall Length (Inch) | 6.6929" |
| Clamping Width (mm) | 24mm |
| Thread Diameter (mm) | 41.91mm |
| No of Flutes | 4 |
| Clamping Length | 27 |
| Thread Diameter Size | 1.1/4 |
| Threading Length (mm) | 30mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
