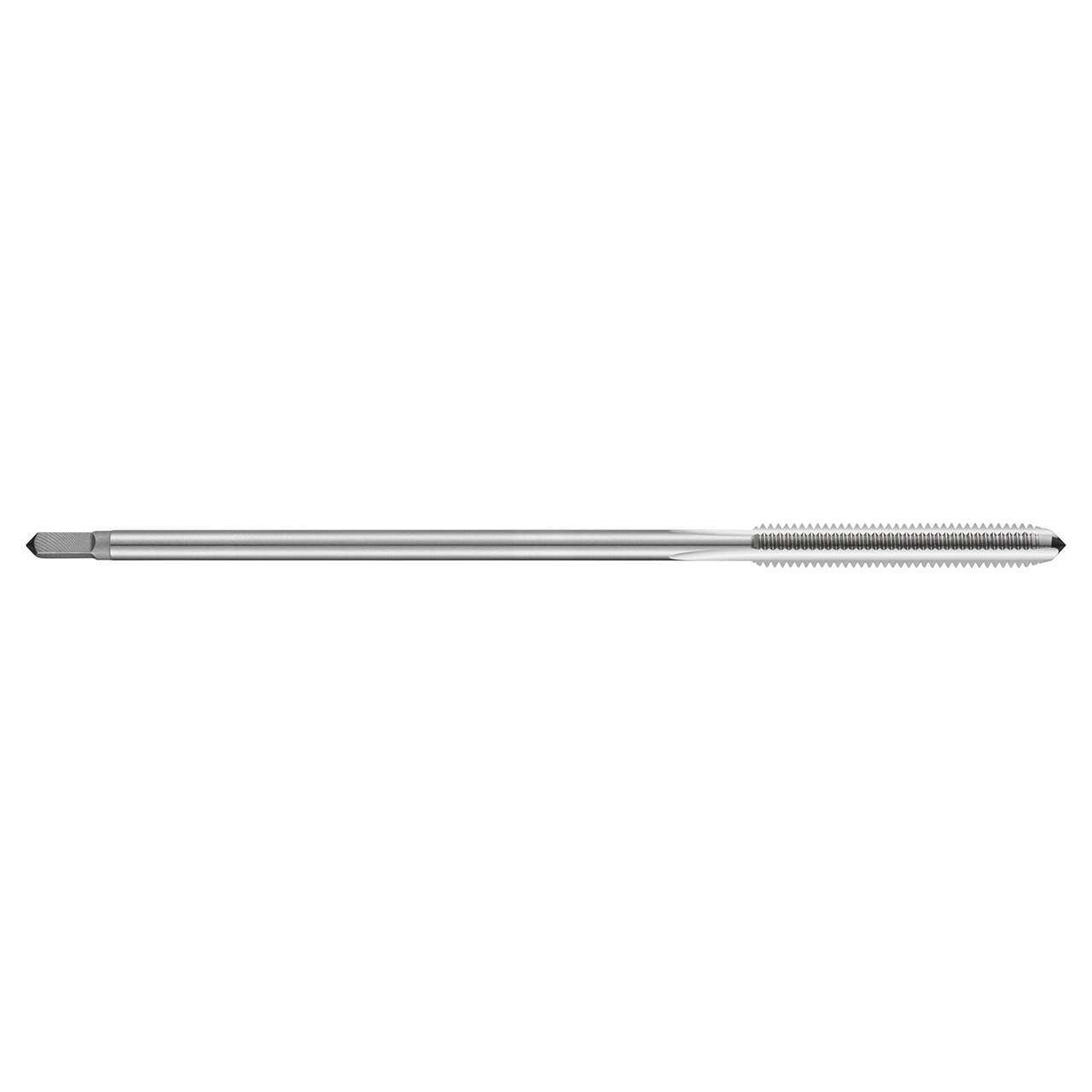

Dormer E303M5NO1 | 0.1378" Diameter x 3.937" OAL 3 Flute Bright Coated Straight Flute Tap

$35.82
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022580
Weight:
0.50 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute nut tap with a 18-20xP extra long taper lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to DIN 357 standard with 3.5mm shank and 2.7mm square drive, cobalt based HSS-E with bright finish for 2xD through or blind hole threading in free machining steel.


Product Specifications
Connection Diameter (Inch)0.1378"
Overall Length (Inch)3.937"
Clamping Width (mm)2.7mm
No of Flutes3
Thread Pitch (mm)0.8mm
Clamping Length6
Thread Diameter Size5
Threading Length (mm)28mm
Material CodeHSS-E
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3 / D 18-20
Surface ColorBright Silver
Thread FormM-Metric coarse
