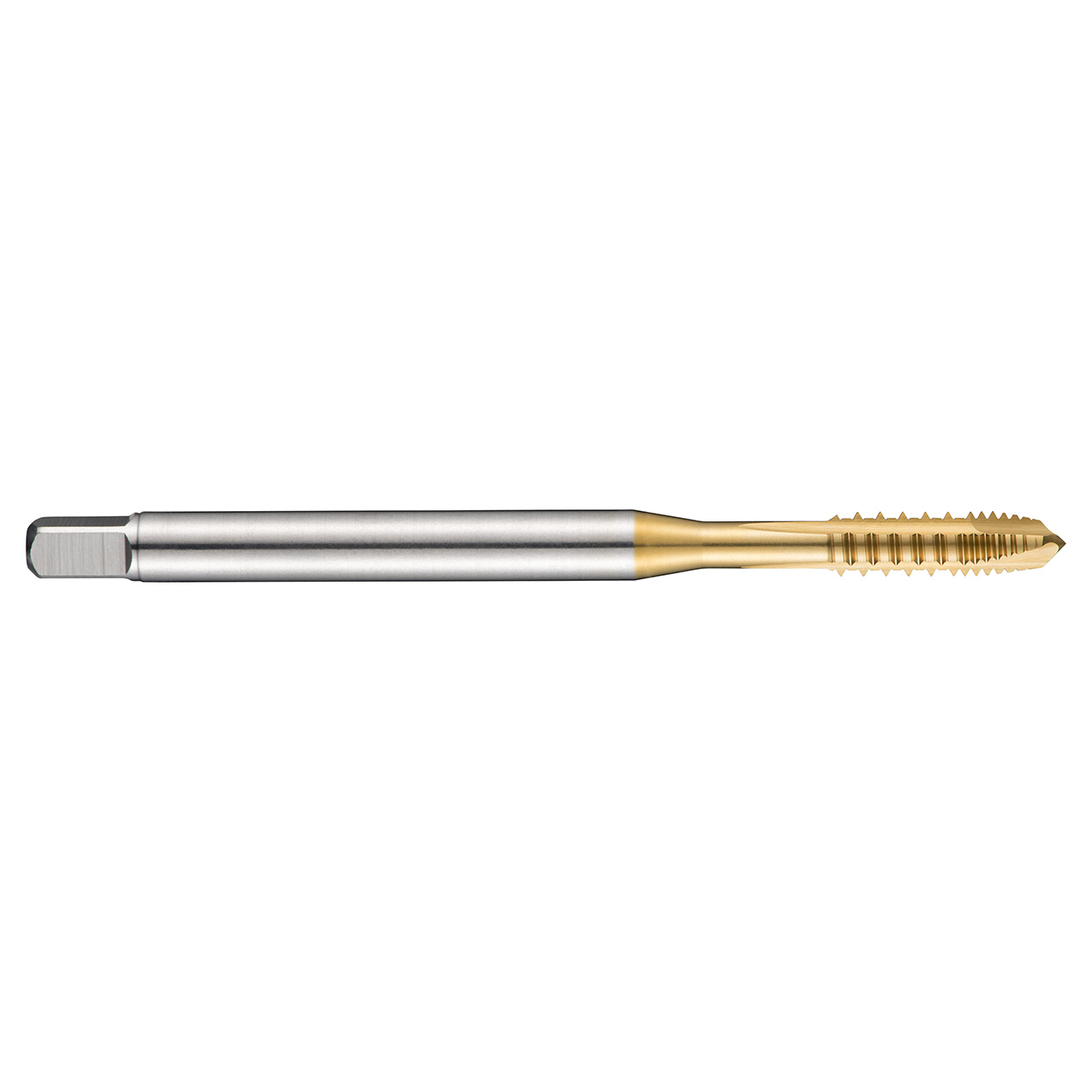

Dormer E422M4 | 0.1772" Diameter x 2.4803" OAL 3 Flute TiN Coated Spiral Point Tap

$45.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022588
UPC:
7320760092941
Weight:
0.28 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.4803"
Clamping Width (mm)3.4mm
No of Flutes3
Usable Length (mm)21mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiN
Tap Chamfer StyleB 3.5-5
Surface ColorGold
Thread FormM-Metric coarse
