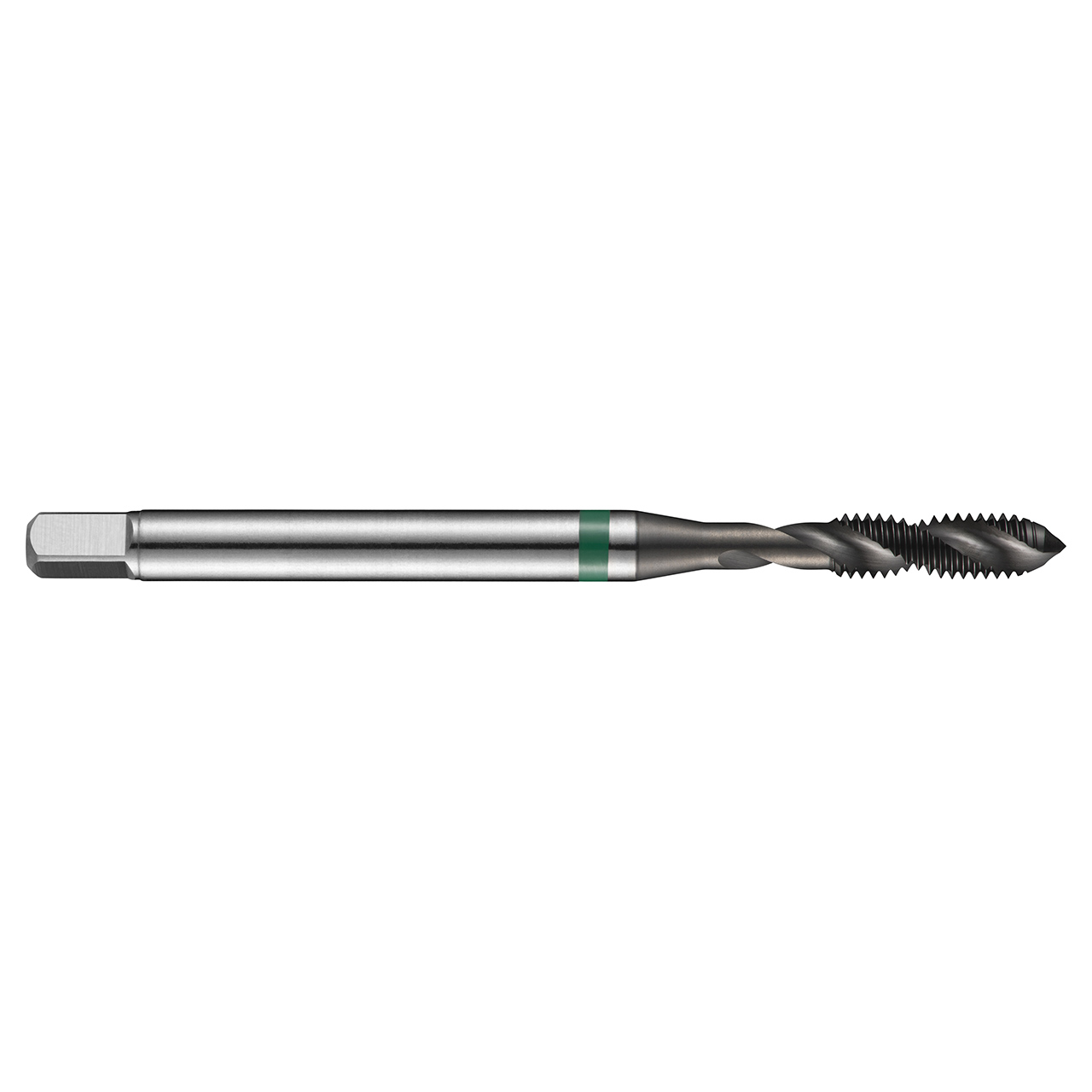

Dormer E474M10 | 0.3937" Diameter x 3.937" OAL 2 Flute SUPER-B Coated Spiral Flute Tap

$63.45
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026775
Weight:
1.86 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

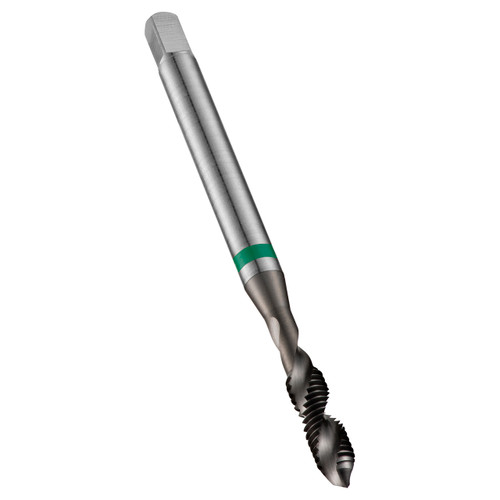

Spiral flute tap Green Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with Super-B coating and 35° helix angle for 2.5xD blind hole threading in cast aluminium.


Product Specifications
Connection Diameter (Inch)0.3937"
Overall Length (Inch)3.937"
Clamping Width (mm)8mm
No of Flutes2
Flute Helix Angle35
Usable Length (mm)39mm
Thread Pitch (mm)1.5mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
