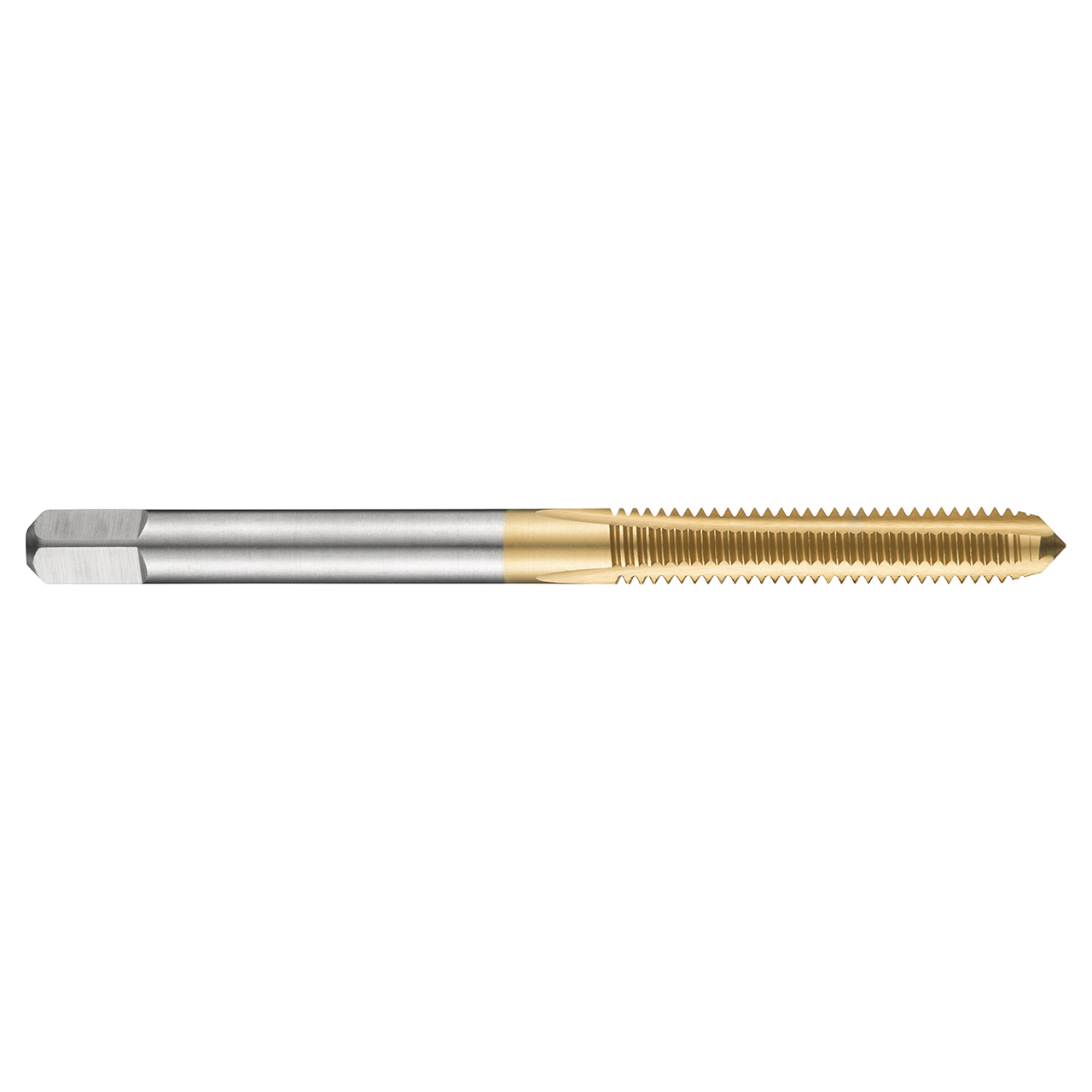

Dormer E504M4NO3 | 0.1575" Diameter x 2.0866" OAL 3 Flute TiN Coated Straight Flute Tap

$14.41
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022976
Weight:
0.25 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0mm shank and 3.15mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in free machining steel and cast-iron.


Product Specifications
Connection Diameter (Inch)0.1575"
Overall Length (Inch)2.0866"
Clamping Width (mm)3.15mm
No of Flutes3
Usable Length (mm)14mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)14mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiN
Surface ColorGold
Thread FormM-Metric coarse
