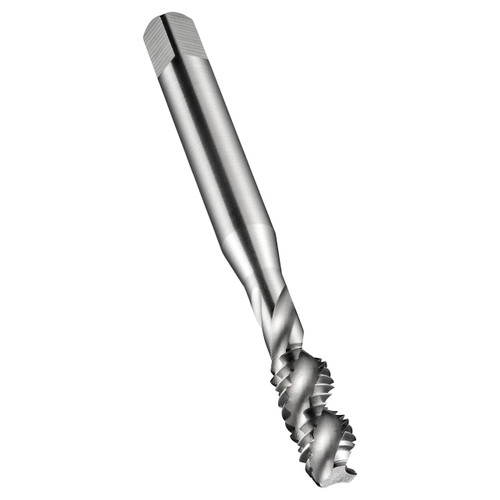

Dormer E5331/8 | 0.124" Diameter x 1.8898" OAL 3 Flute Bright/ST Coated Spiral Flute Tap

$46.24
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023888
UPC:
7320760201459
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Whitworth thread BSW 1/8" with 40 TPI and Medium class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.124"
Overall Length (Inch)1.8898"
Clamping Width (mm)2.5mm
Thread Diameter (mm)3.175mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)12.5mm
Thread Diameter Size1/8
Threading Length (mm)12.5mm
Material CodeHSS
Thread Tolerance ClassMedium
Cutting DirectionRight Hand
CoatingBright/ST
Tap Chamfer StyleC 2-3
Surface ColorBright & Blue
Thread FormBSW-British standard Whitworth
