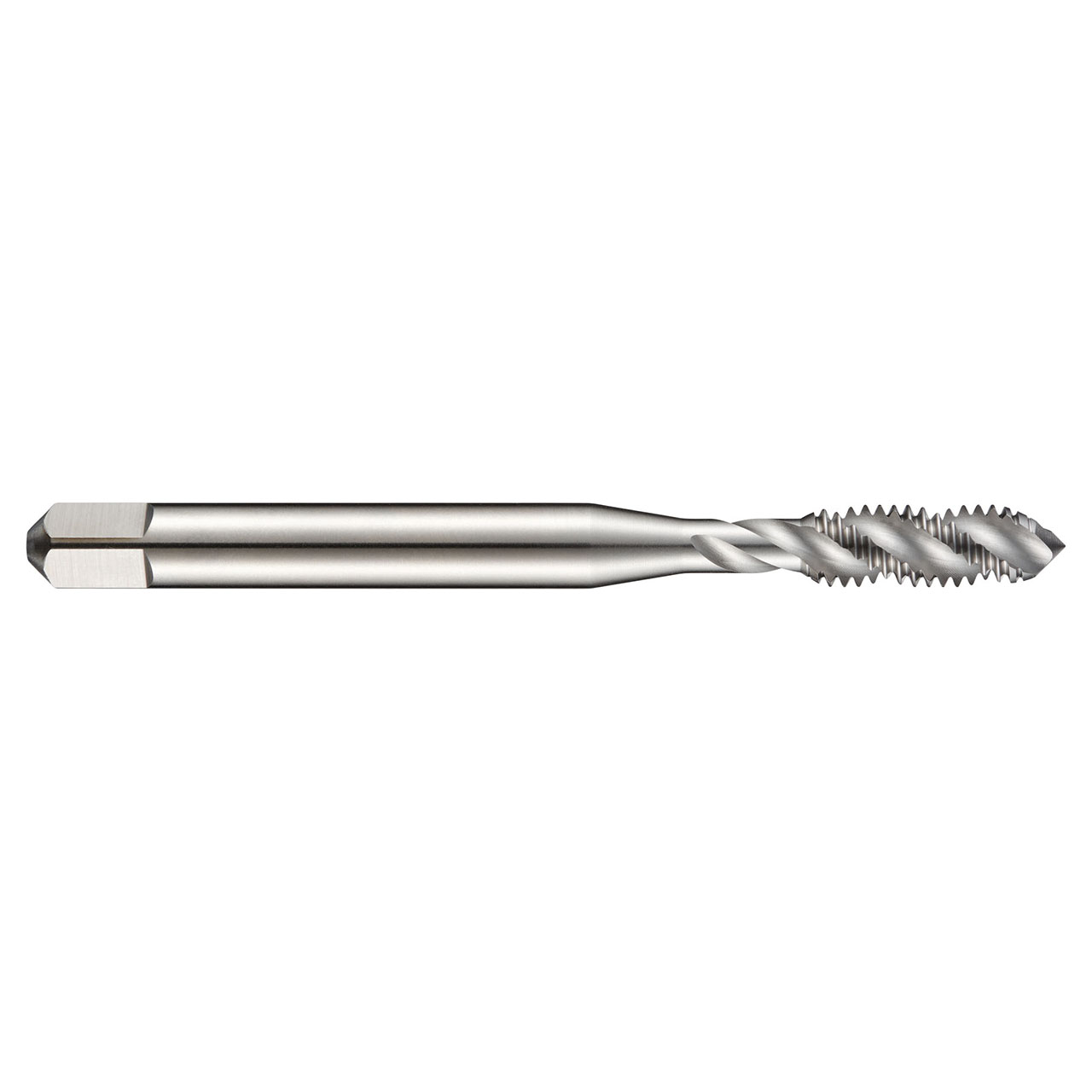

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Association thread BA 2 with 0.81mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel.
Product Specifications
| Connection Diameter (Inch) | 0.1969" |
| Overall Length (Inch) | 2.2835" |
| Clamping Width (mm) | 4mm |
| Thread Diameter (mm) | 4.7mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Usable Length (mm) | 20mm |
| Thread Pitch (mm) | 0.81mm |
| Clamping Length | 7 |
| Thread Diameter Size | BA 2 |
| Threading Length (mm) | 12mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright & Blue |
| Thread Form | BA-British association |
