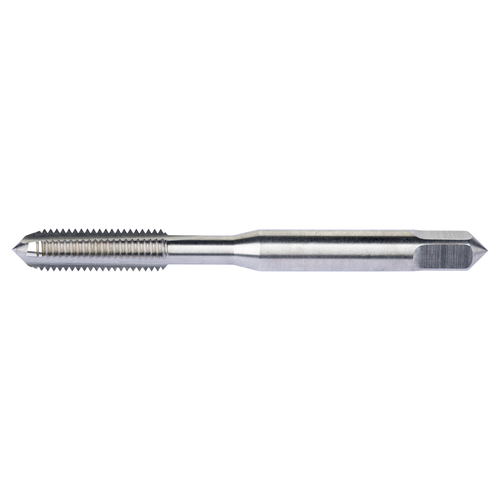

Dormer E559UNF10X32NO3 | 16.00mm Thread Diameter x 4.83mm Thread Length Bright Coated HSS Straight Flute Bottom Tap

$7.46
Brand:
Dormer
Overall Length (Inch):
2-9/32"
Overall Length (Decimal Inch):
2.2800"
Overall Length (mm):
58.00mm
interval quantity:
1
SKU:
17995389
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Thread size UNF 0.19 inch - 32 TPI, with thread tolerance class 93707.


Product Specifications
Manufacturer Part NumberE559UNF10X32NO3
Connection Diameter (mm)5.00mm
Usable Length (mm)25.00mm
Overall Length (mm)58.00mm
Thread Length (mm)16.00mm
Thread Diameter (mm)4.83mm
Threads Per Inch (TPI)32 TPI
Premachined Hole Diameter (mm)4.10mm
Clamping Length (mm)7.00mm
Clamping Width (mm)4.00mm
Number of Flutes3
Tap Chamfer StyleC 2 - 3
Thread FormUNF - Unified Fine
Flute GeometryStraight Flute Geometry
Cutting DirectionRight Hand
Basic Standard GroupISO 529
MaterialHSS
CoatingBright
Product TypeStraight Flute Bottom Tap
Country of OriginIndia
