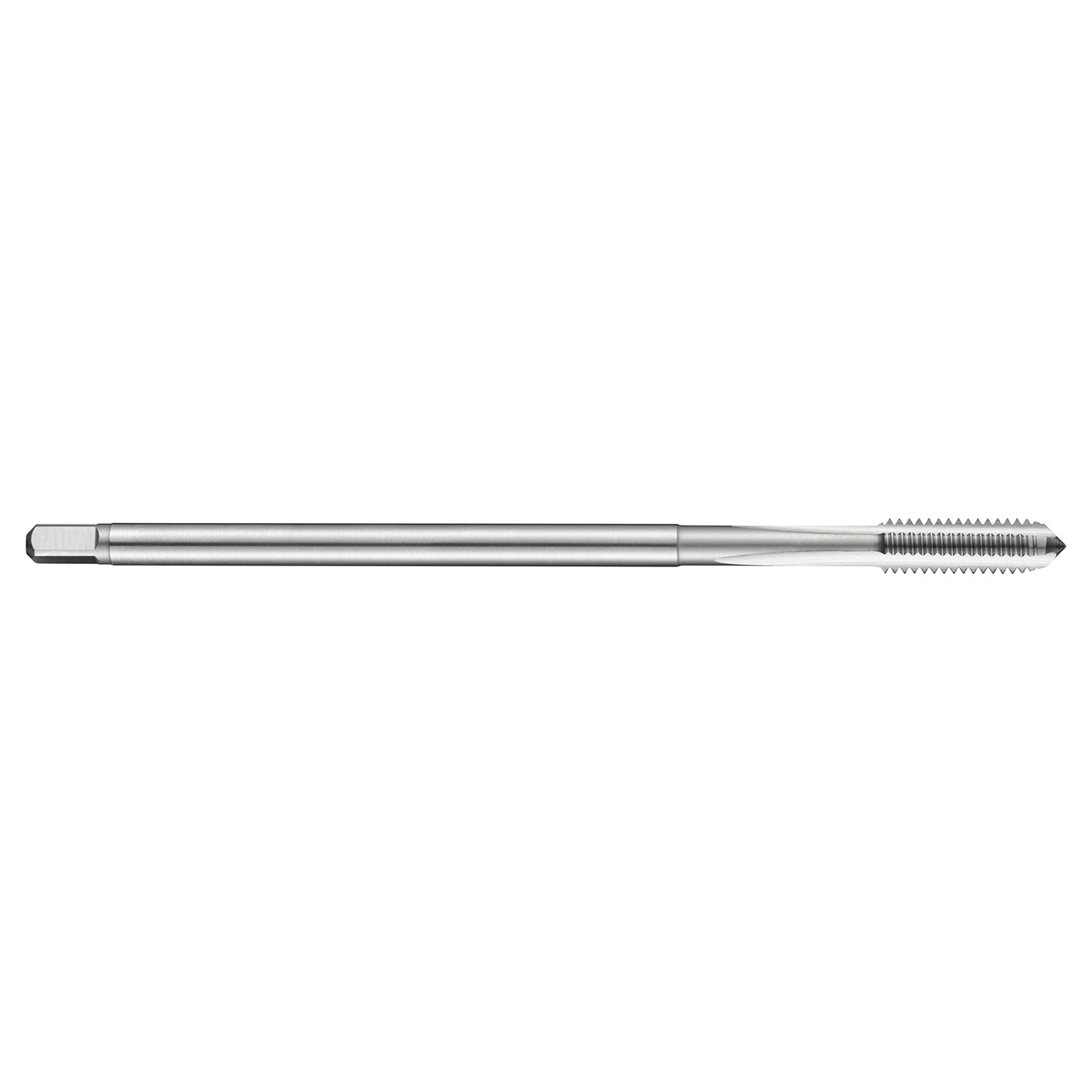

Long shank straight flute tap NO2 with a 4-6xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 4.5mm shank and 3.55mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.1772" |
| Overall Length (Inch) | 3.5039" |
| Clamping Width (mm) | 3.55mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 6 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 14mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
