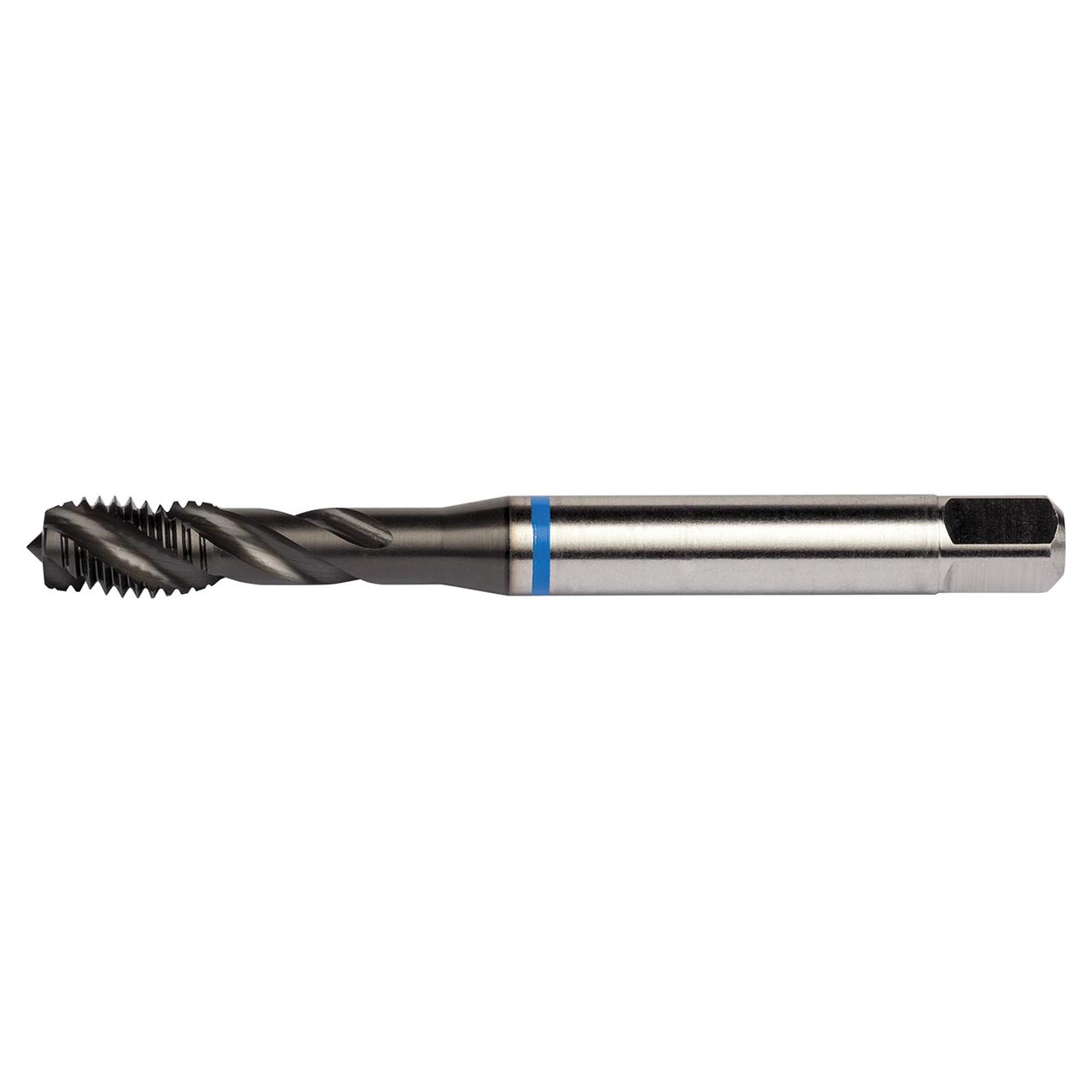

Dormer E628M4 | 0.168" Diameter x 2.4803" OAL 3 Flute SUPER-B Coated Spiral Flute Tap

$32.45
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025994
Weight:
0.28 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680" shank and 0.1290" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.168"
Overall Length (Inch)2.4803"
No of Flutes3
Flute Helix Angle40
Usable Length (mm)21mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)7mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
