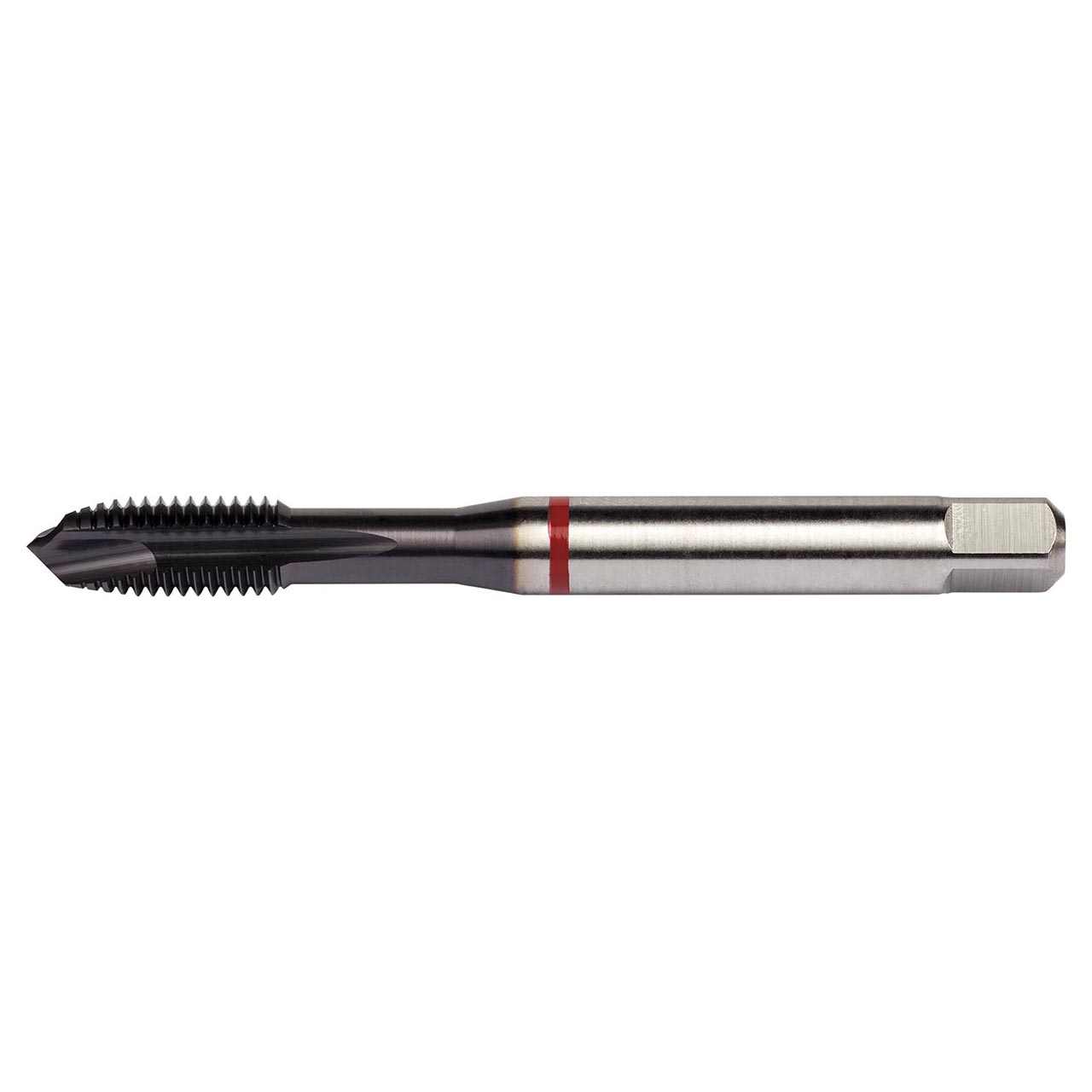

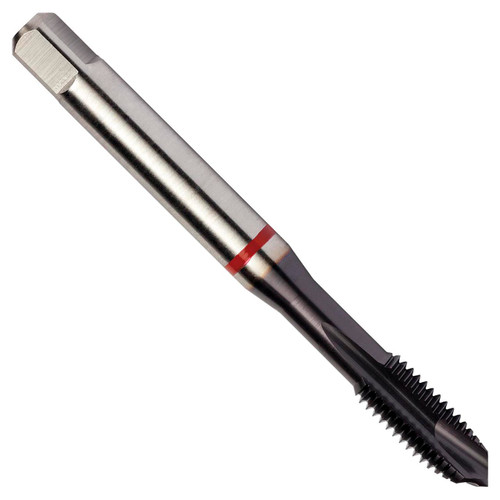

Dormer E767M14X1.5 | 0.429" Diameter x 3.937" OAL 3 Flute TiAlN/Top Coated Spiral Point Tap

$79.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026049
Weight:
2.93 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M14 with 1.50mm pitch and D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4290" shank and 0.3200" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.429"
Overall Length (Inch)3.937"
No of Flutes3
Thread Pitch (mm)1.5mm
Clamping Length13
Thread Diameter Size14
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormMF-Metric fine
