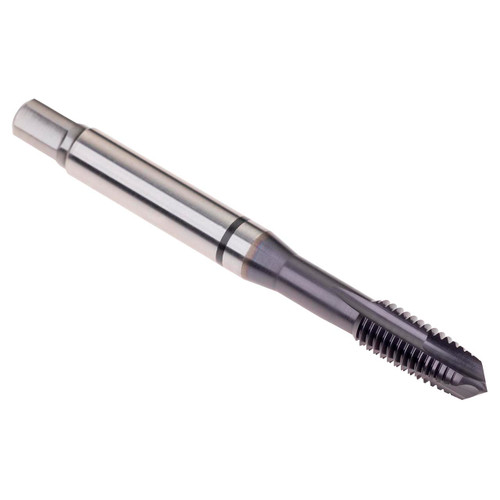

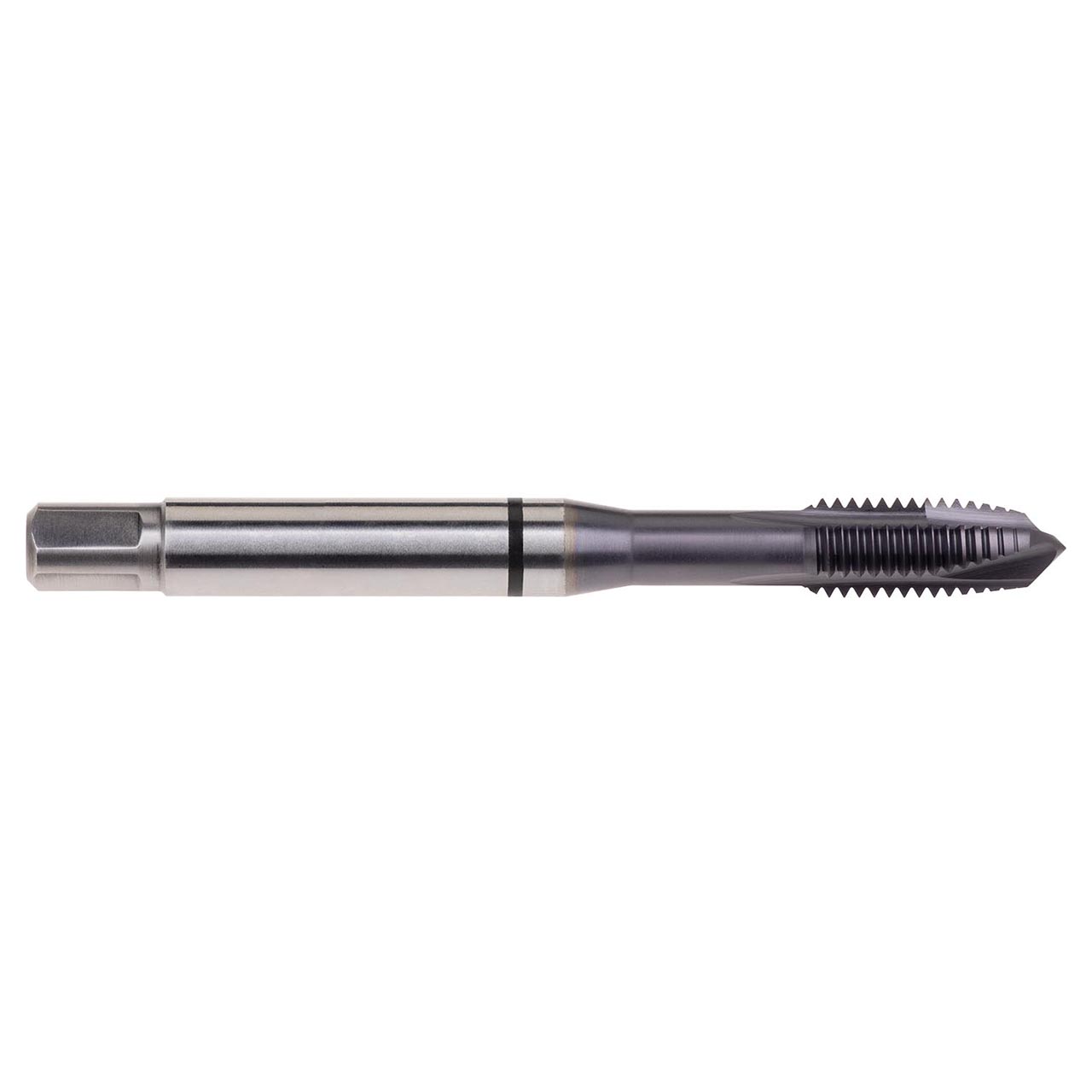

Dormer E817M3 | 0.168" Diameter x 2.4803" OAL 3 Flute TiAlN/Top Coated Spiral Point Tap

$29.25
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
17978659
Weight:
0.28 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Designed for high performance through hole tapping in high strength and heat resistant workmaterials with hardness up to 45HRC. The TiAlN-Top coating combined with geometry that significantly increases cutting edge strength, provides excellent performance and consistency in hard and difficult to machine materials..


Product Specifications
Connection Diameter (Inch)0.168"
Overall Length (Inch)2.4803"
No of Flutes3
Usable Length (mm)22mm
Thread Pitch (mm)0.5mm
Clamping Length6.35
Thread Diameter Size3
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
