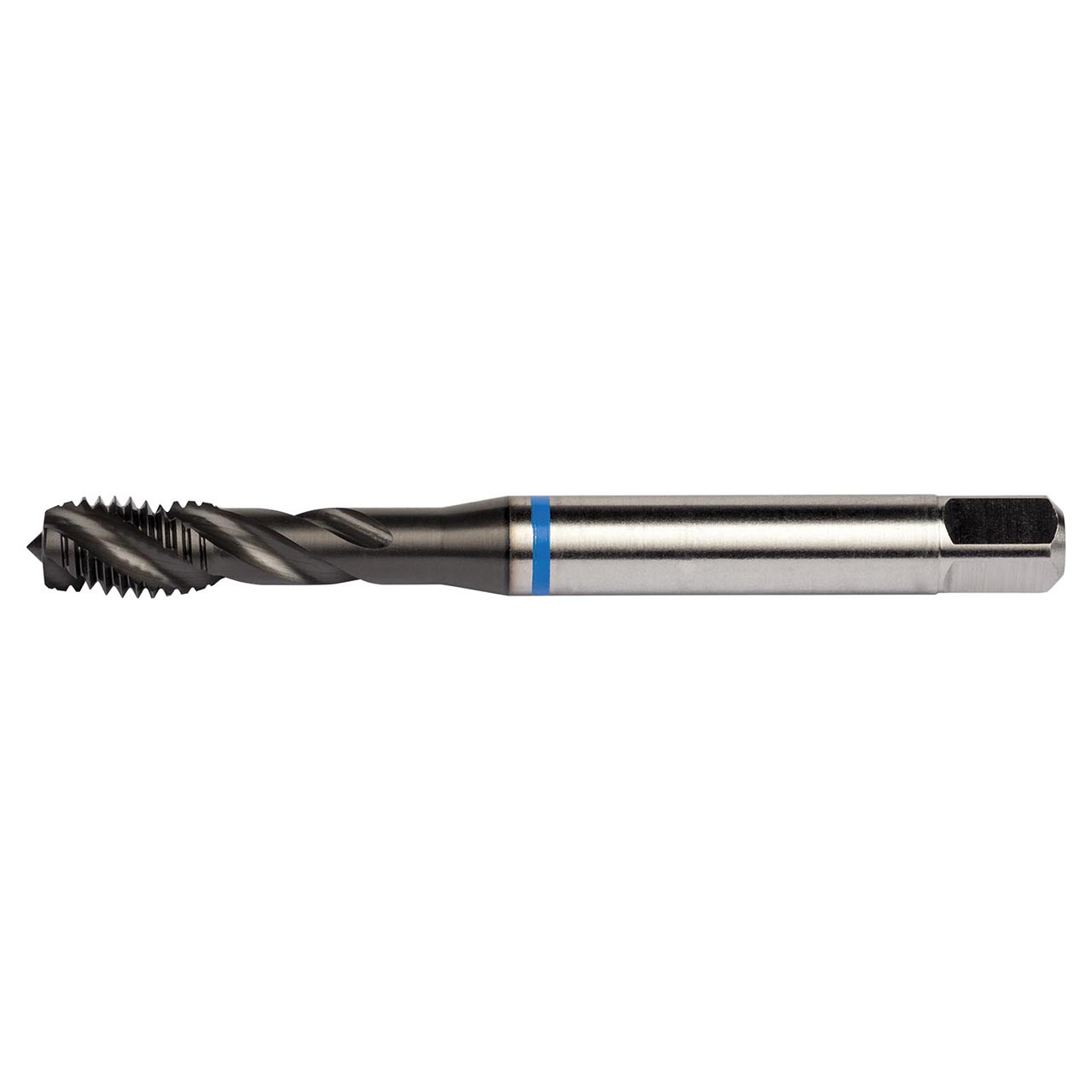

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with Super-B coating and 40 Degree helix angle for 2.5xD blind hole threading in stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.194" |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Usable Length (Inch) | 1.102" |
| Thread Diameter Size | 10 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B-3B |
| Threading Length (Inch) | 0.315" |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
