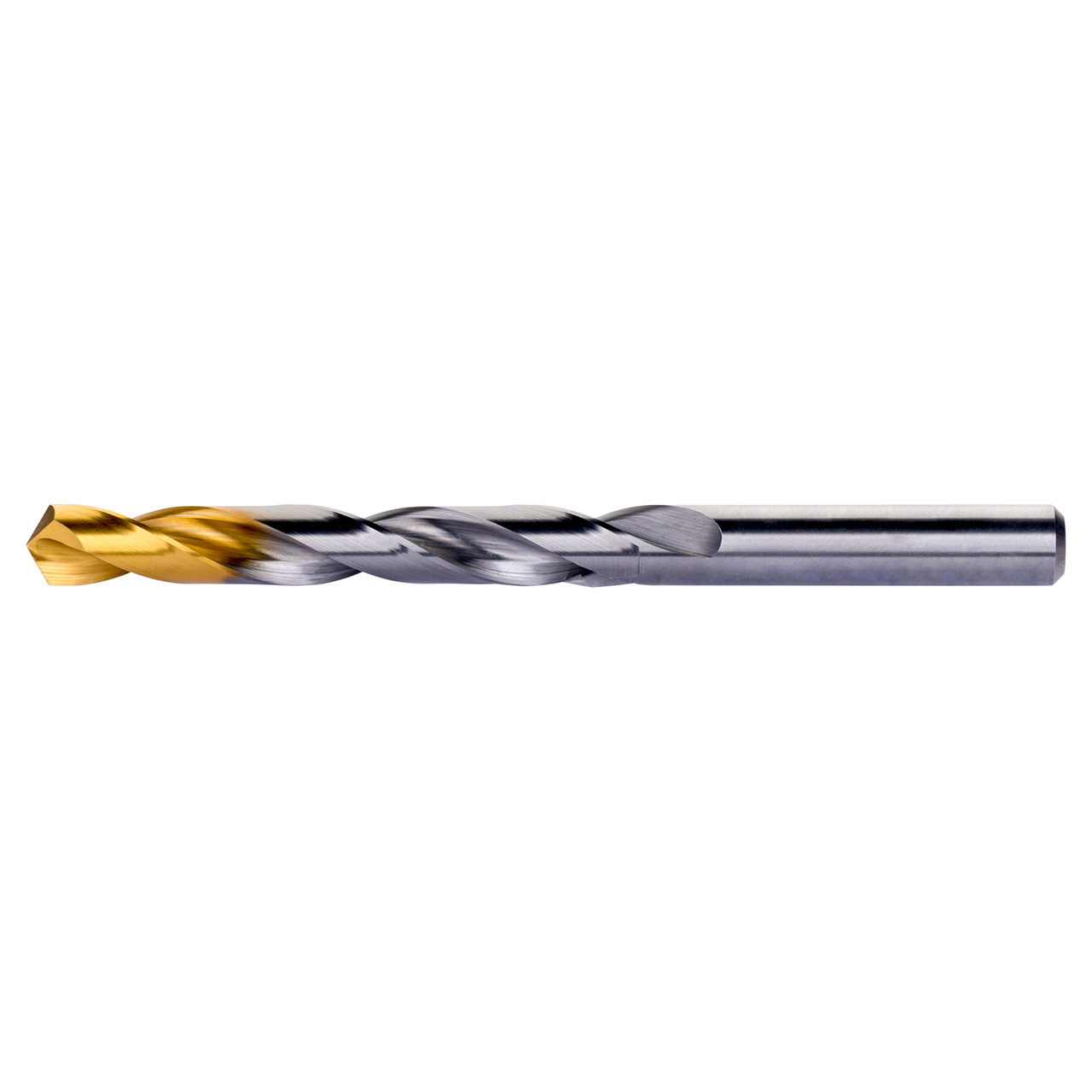

Cutting diameter 0.081 inch, overall length 1.9291 inch, flute length 0.9449 inch, and maximal drilling depth 0.324 inch without pecking.
Product Specifications
| Manufacturer Part Number | R003N46 |
| Cutting Diameter (Decimal Inch) | 0.081" |
| Cutting Diameter (mm) | 2.06mm |
| Connection Diameter (mm) | 2.06mm |
| Overall length (mm) | 49.00mm |
| Overall Length (Decimal Inch) | 1.929" |
| Material | HM |
| Coating | Bright/TiN |
| Point Angle (Degree) | 120 Degree |
| Cutting Direction | Right Hand |
| Product Type | Jobber Drill |
| Country of Origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Cutting Diameter (Decimal Inch):
0.0810"
Cutting Diameter (mm):
2.06mm
Overall Length (Decimal Inch):
1.9290"
Overall length (mm):
49.00mm
Drill Point Angle:
120 Degree
Material:
HM
Finish/Coating:
Bright/TiN
Shank Type:
Cylindrical shank
interval quantity:
1
