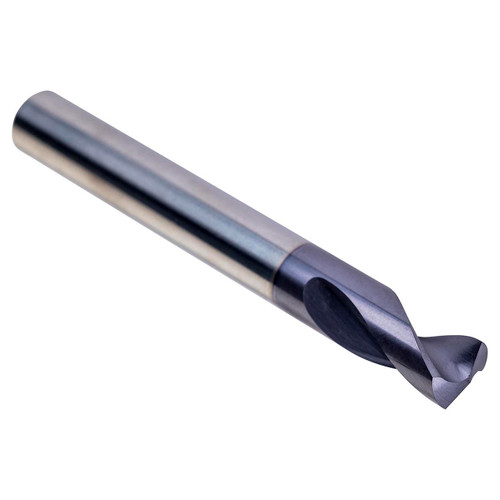

Spot drill with straight shank, diameter 10mm with an overall length of 89mm and flute length of 26mm according to Dormer standard with 150 Degree point angle, solid carbide with TiAlN coating for steel, stainless steel, cast iron, non-ferrous material, super-alloy or hardened material.
Product Specifications
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 3.5039" |
| Point Angle | 150 |
| Material Code | HM |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Body Diameter (Inch):
25/64"
Body Diameter (Decimal Inch):
0.3937"
Body Diameter (mm):
10mm
Drill Point Angle:
150 Degree
Material:
HM
Finish/Coating:
TiAlN
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
