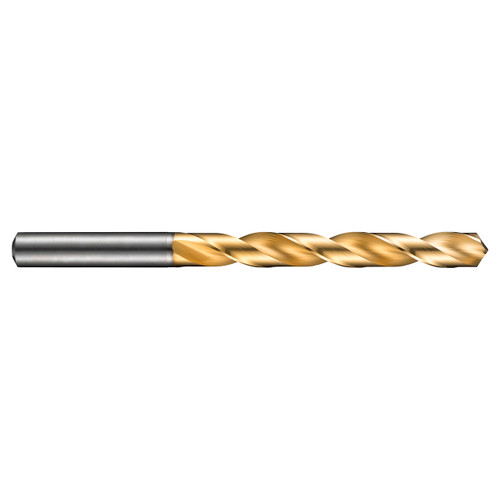

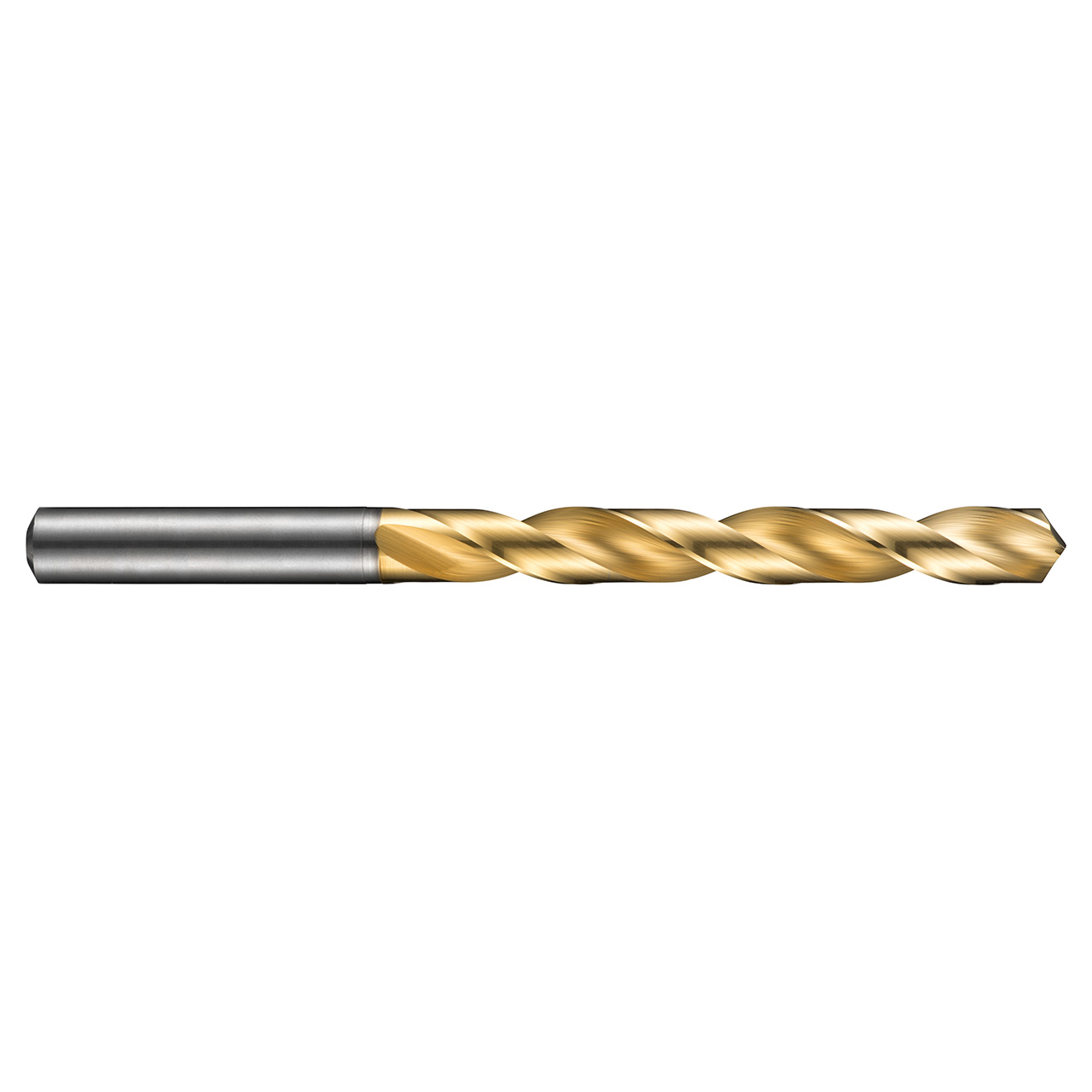

Dormer R5103.2 | 0.126" Diameter x 2.5591" OAL TiN Coated Jobber Length Drill Bit

$67.26
Brand:
Dormer
Drill Bit Size (Inch):
1/8"
Drill Bit Size (Decimal Inch):
0.1260"
Drill Bit Size (mm):
3.2mm
Drill Point Angle:
130°
Overall Length (Inch):
2-9/16"
Overall Length (Decimal Inch):
2.5591"
Overall Length (mm):
65mm
Cutting Direction:
Right Hand
Material:
HM
Finish/Coating:
TiN
SKU:
10110474
UPC:
7320760148990
Weight:
0.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium. With a 130° point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds. With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds.


Product Specifications
EDP Number0148990
Usable Length4
Connection Diameter (Inch)0.126"
Cutting Diameter (Inch)0.126"
Overall Length (Inch)2.5591"
Point Angle130
Material CodeHM
Drill LengthJobber
Cutting DirectionRight Hand
CoatingTiN
Surface ColorGold
