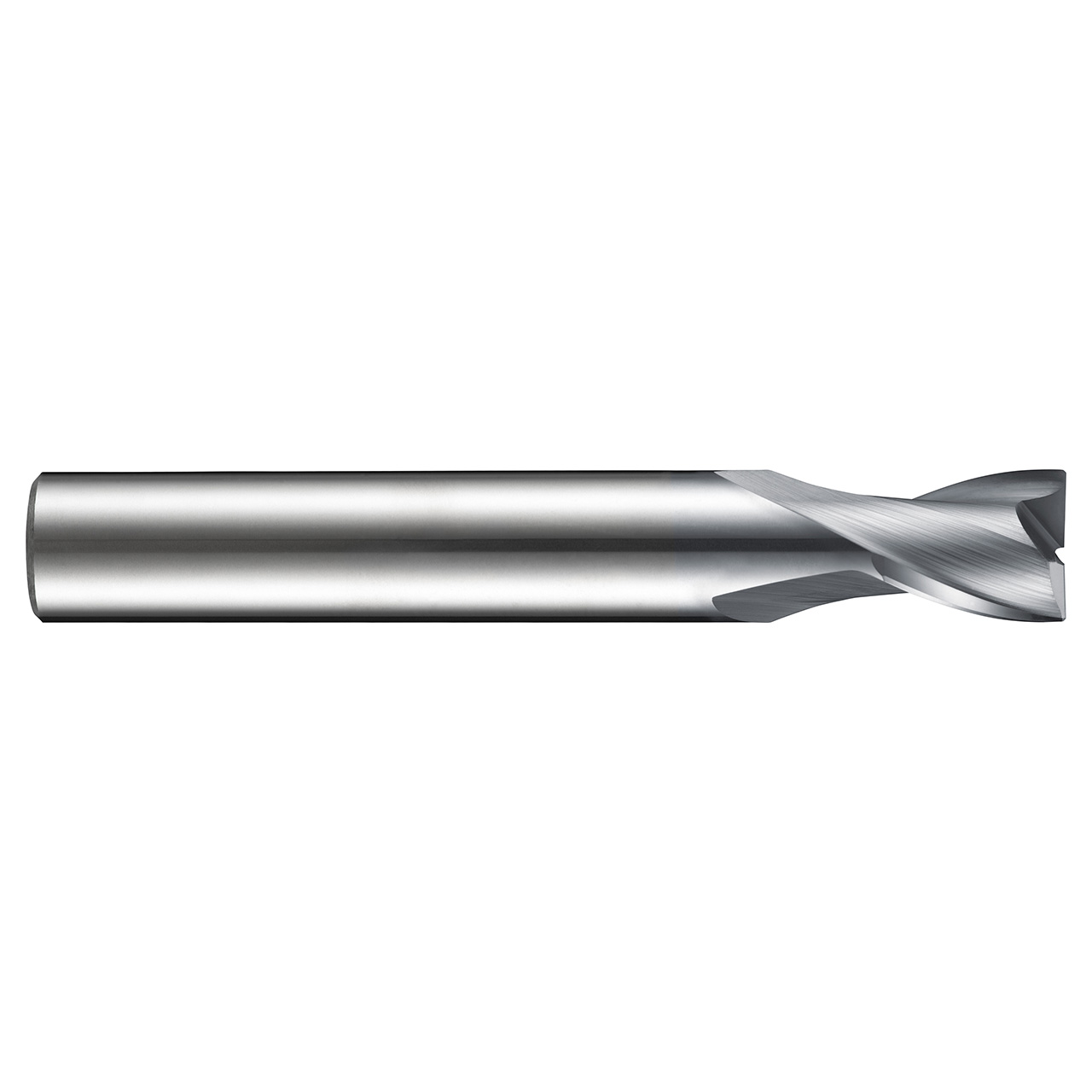

Dormer S802HA3.5 | 0.1378" Diameter x 1.9685" OAL 2 Flute AlCrN Coated Slot Drill

$42.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114380
Weight:
0.71 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S802HA milling cutters from Dormer have a short length flute design, giving them high rigidity for milling shallow slots and the accurate diameter gives you a high degree of confidence for milling standard keyway slots to a P9 tolerance. The tools are manufactured from premium carbide with an Alcrona coating which, together, ensure superior performance, particularly when milling difficult to machine materials, and also extend tool life. S802HA 2-flute slot drills have a straight shank and are very versatile, being suitable for plunging, ramping and profile milling in steels, stainless steels, cast iron and non-ferrous materials.


Product Specifications
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1378"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.08mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
