Product Specifications
| Manufacturer Part Number | 10679S |
| Length of Cut Minimum (Inch) | 11/16" |
| Length of Cut Minimum (mm) | 17.50mm |
| Length of Cut Maximum (Inch) | 4" |
| Length of Cut Maximum (mm) | 102.00mm |
| Cutting Width (Inch) | 0.7095" |
| Minimum Hole Size (Inch) | 1.8900" |
| Minimum Hole Size (mm) | 0.8740" |
| Body Width (Inch) | 0.8740" |
| Body Width (mm) | 22.20mm |
| Overall Length (Inch) | 60" |
| Overall Length (mm) | 1524mm |
| Body Height (Inch) | 1.625" |
| Body Height (mm) | 41.2mm |
| Shank Length (Inch) | 12" |
| Shank Length (mm) | 305mm |
| Functional Height (Inch) | 0.237" |
| Thread Size | 1"-8 |

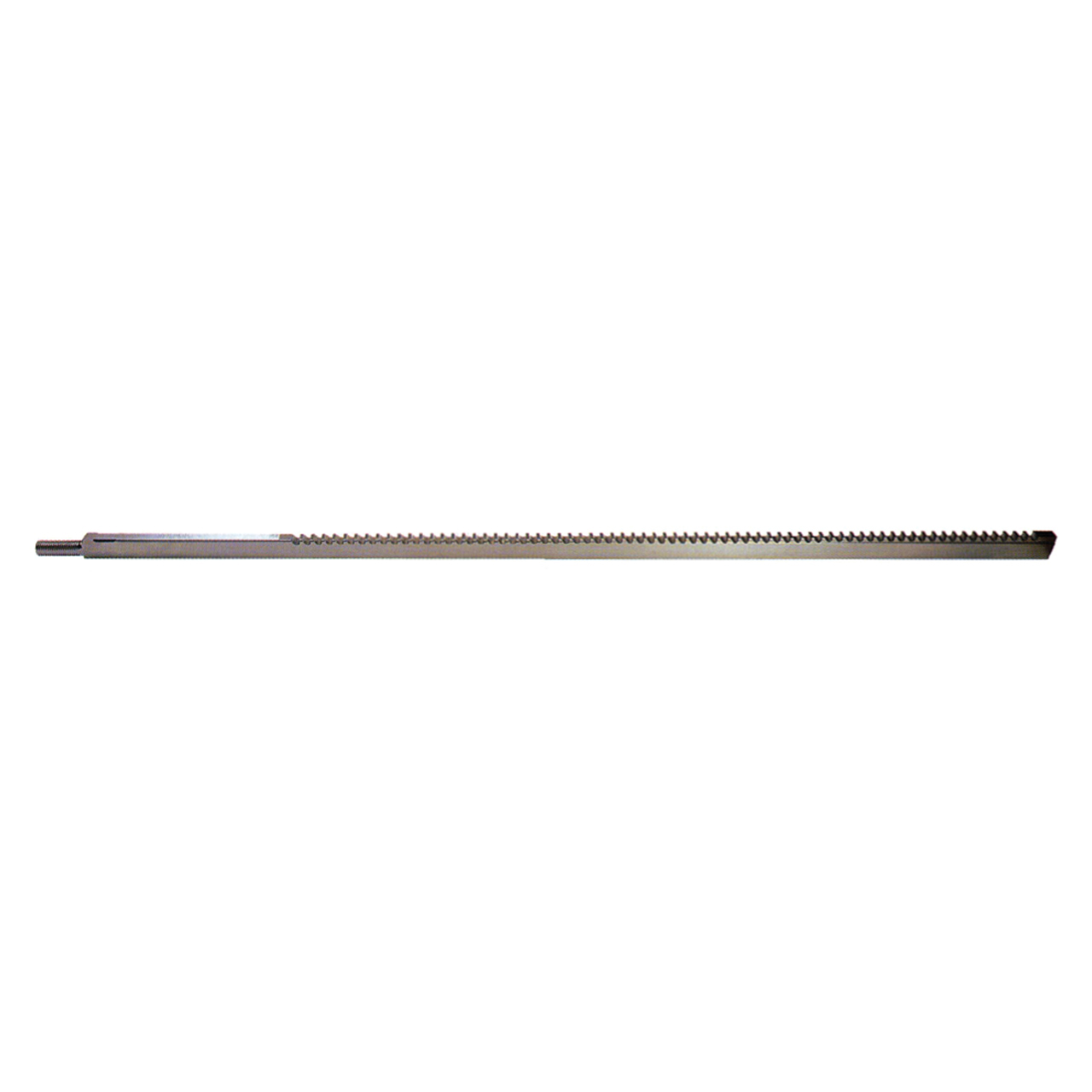

| Product Type | Pull-Type Keyway Broach |
