Product Specifications
| EDP Number | 99036 |
| Tool Holder Size | 5-32-S |
| Minimum Bore Diameter (mm) | 13.5mm |
| Minimum Bore Diameter (Inch) | 0.531" |
| Stem Diameter (mm) | 12mm |
| Stem Diameter (Inch) | 0.472" |
| Stem Length (mm) | 46mm |
| Stem Length (Inch) | 1.811" |
| Overall Length (mm) | 155mm |
| Overall Length (Inch) | 6.102" |
| Centering Plate | CP-1 |
| Mounting Screw | MS-1 |
| Driver | T08 |
| Through Tool Coolant | Yes |

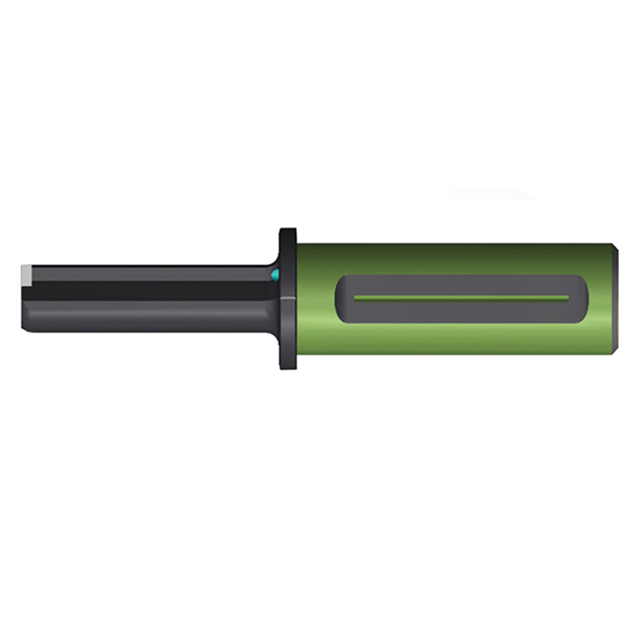

| Product Type | Indexable Broaching Toolholder |
