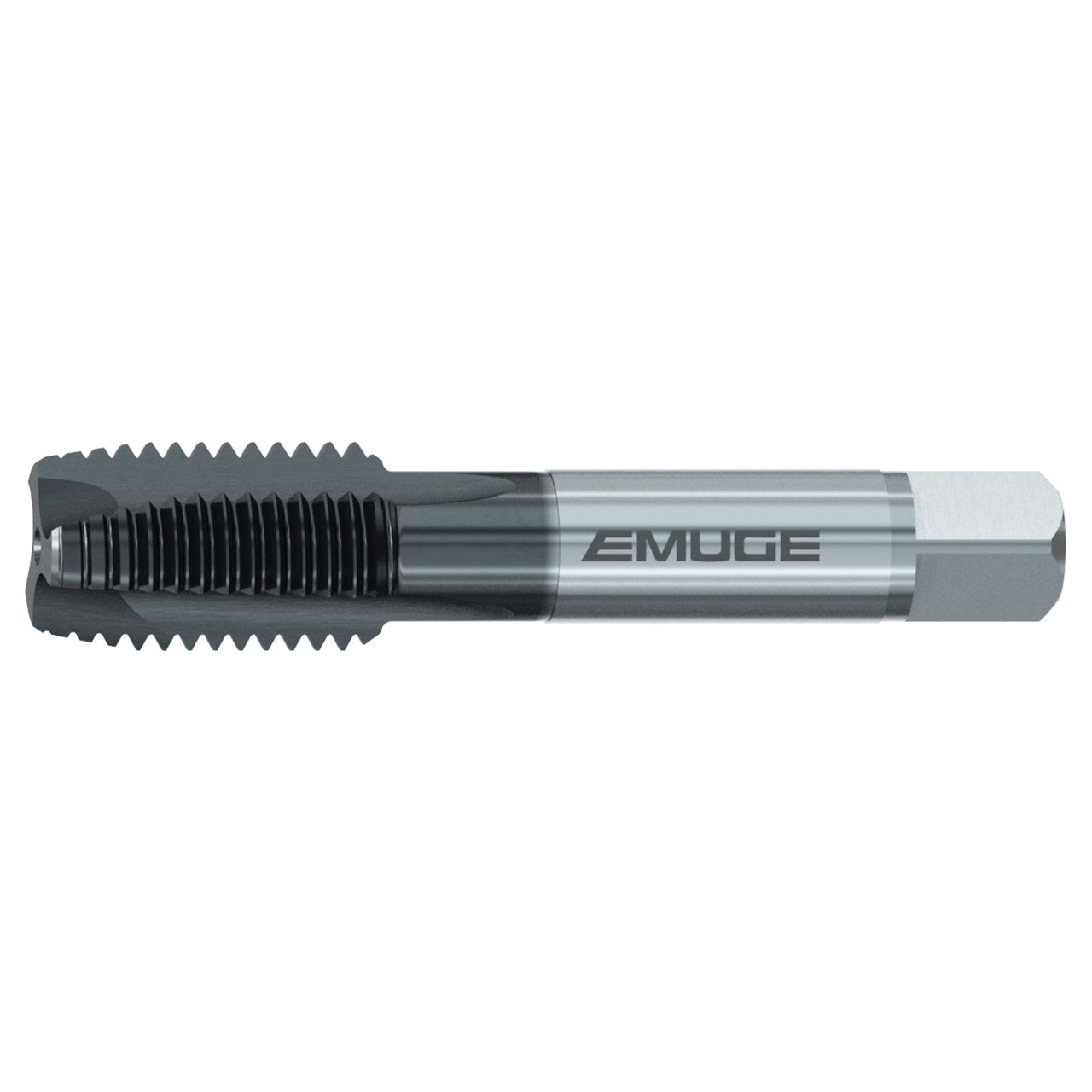

Features:
- Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications.
- Longer tool life and more consistent thread quality
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
Product Specifications
| Manufacturer Part Number | AX321005.5049 |
| Thread Size | 5/8"-18 |
| Thread Diameter Size | 5/8" |
| Thread Per Inch (TPI) | 18 TPI |
| Thread Length (Decimal Inch) | 0.866" |
| Overall Length (Decimal Inch) | 3.813" |
| Length Group | ANSI Length |
| Number of Flutes | 3 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | H5 |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
5/8-18"
Thread Diameter Size:
5/8"
Thread Per Inch (TPI):
18 TPI
Overall Length (Inch):
3-13/16"
Overall Length (Decimal Inch):
3.8130"
Overall Length (mm):
96.85mm
Thread Length (Inch):
84/97"
Thread Length (Decimal Inch):
0.8660"
Thread Length (mm):
22.00mm
Number of Flutes:
3
Coating:
GLT-1
interval quantity:
1
