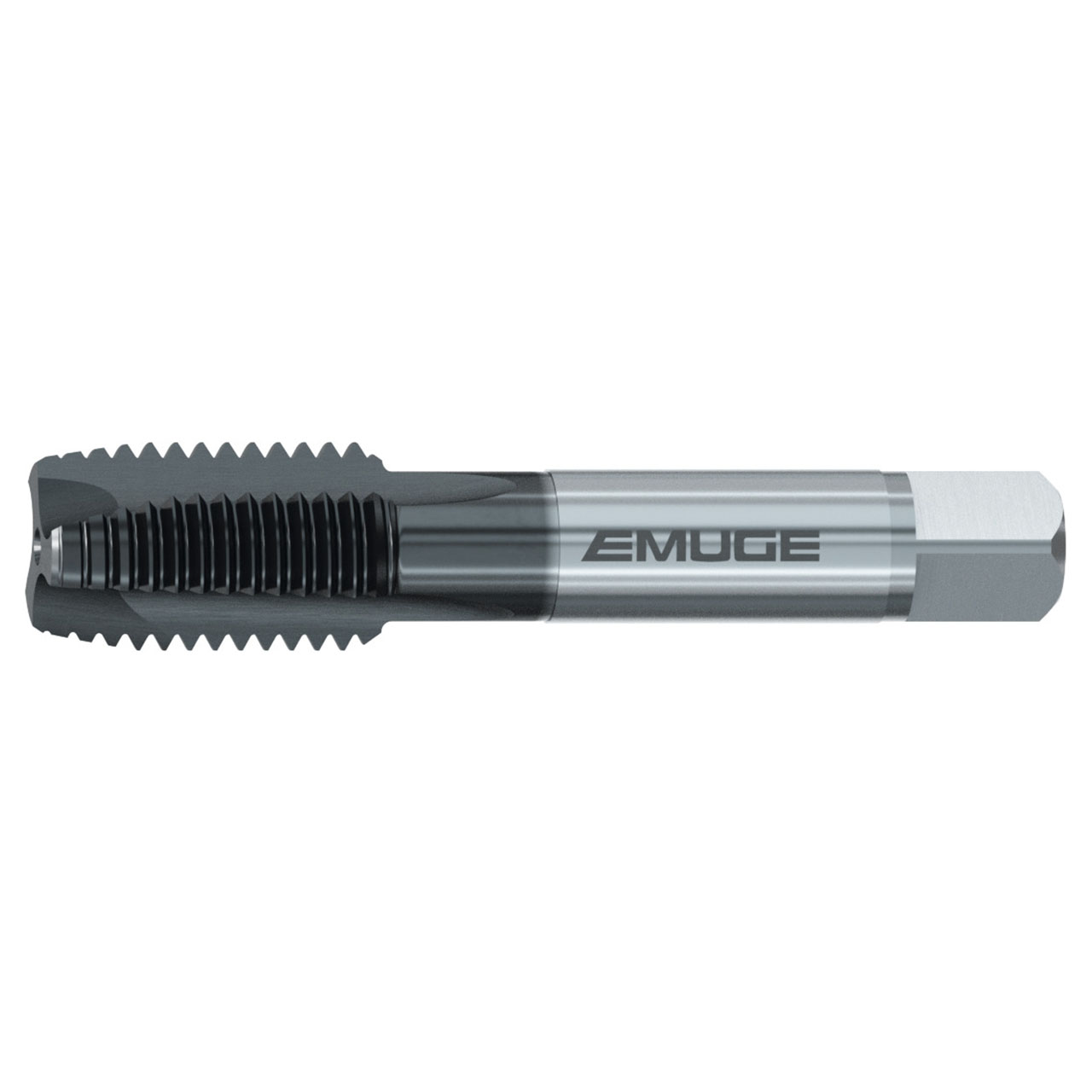

Features:
- Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications.
- Longer tool life and more consistent thread quality
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
Product Specifications
| Manufacturer Part Number | AX321009.5050 |
| Thread Size | 3/4"-16 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 16 TPI |
| Thread Length (Decimal Inch) | 0.984" |
| Overall Length (Decimal Inch) | 4.250" |
| Length Group | ANSI Length |
| Number of Flutes | 4 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | H9 |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
3/4-16"
Thread Diameter Size:
3/4"
Thread Per Inch (TPI):
16 TPI
Overall Length (Inch):
4-1/4"
Overall Length (Decimal Inch):
4.2500"
Overall Length (mm):
107.95mm
Thread Length (Inch):
61/62"
Thread Length (Decimal Inch):
0.9840"
Thread Length (mm):
24.99mm
Number of Flutes:
4
Coating:
GLT-1
