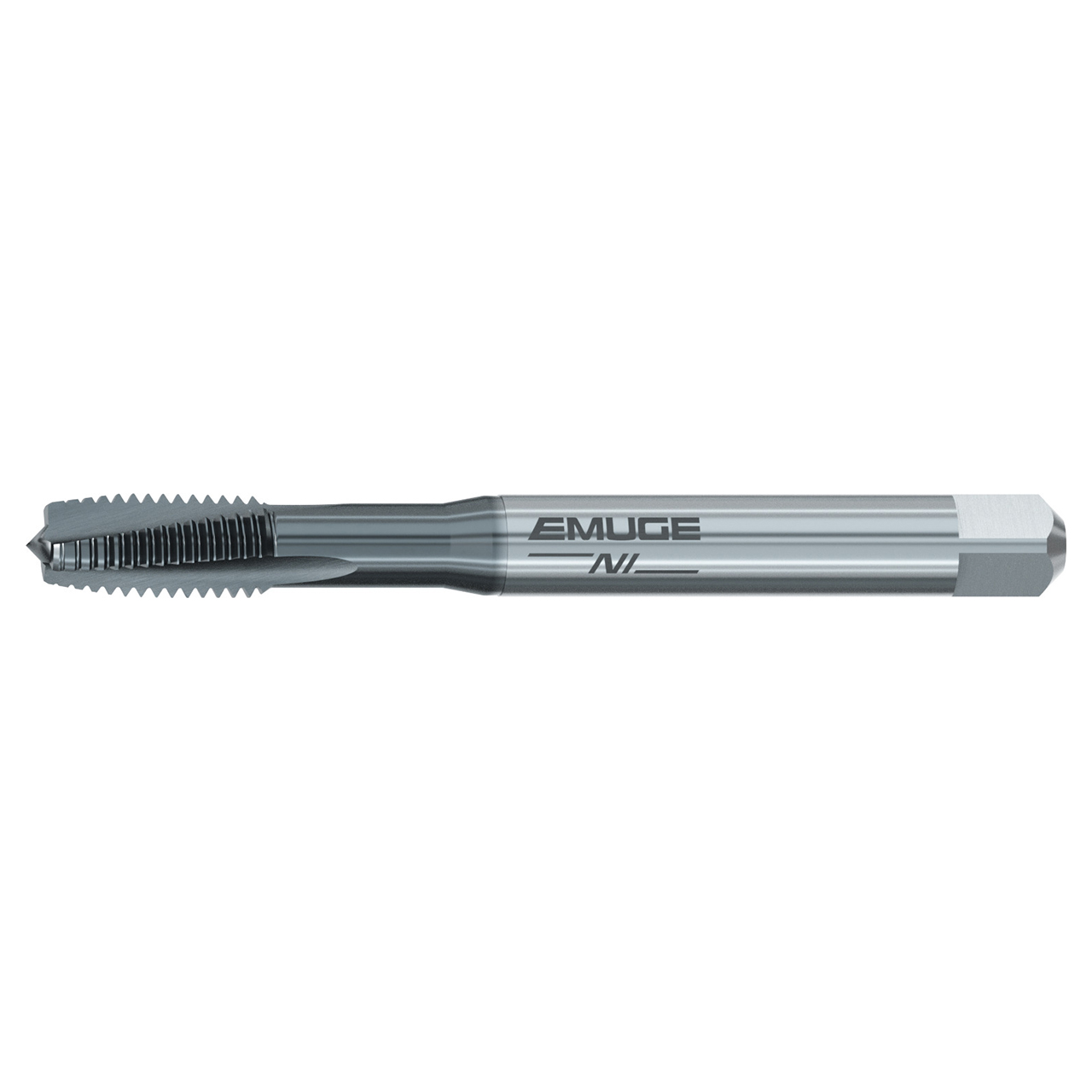

Features:
- Rekord C-NI plug style taps with Advanced Left-Hand Helical Flute Form and chamfer geometry
- Optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security
- HSSE-PM powdered metal tool base material for longer tool life
- For through hole applications
Product Specifications
| Manufacturer Part Number | B030J411.2026 |
| Thread Size | MJ 8x1.25 |
| Thread Diameter Size | MJ 8 |
| Thread Standard | MJ |
| Thread Pitch (mm) | 1.25mm |
| Tap Square (mm) | 6.20mm |
| Thread Length (mm) | 20.00mm |
| Overall Length (mm) | 90.00mm |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | D |
| Class of Fit | 4HX |
| Dimensional Standards | DIN / DIN |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 8 Degree |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Tool Type | EMUGE NI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
MJ 8x1.25
Finish/Coating:
TICN
Flute Direction:
Left Hand
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
