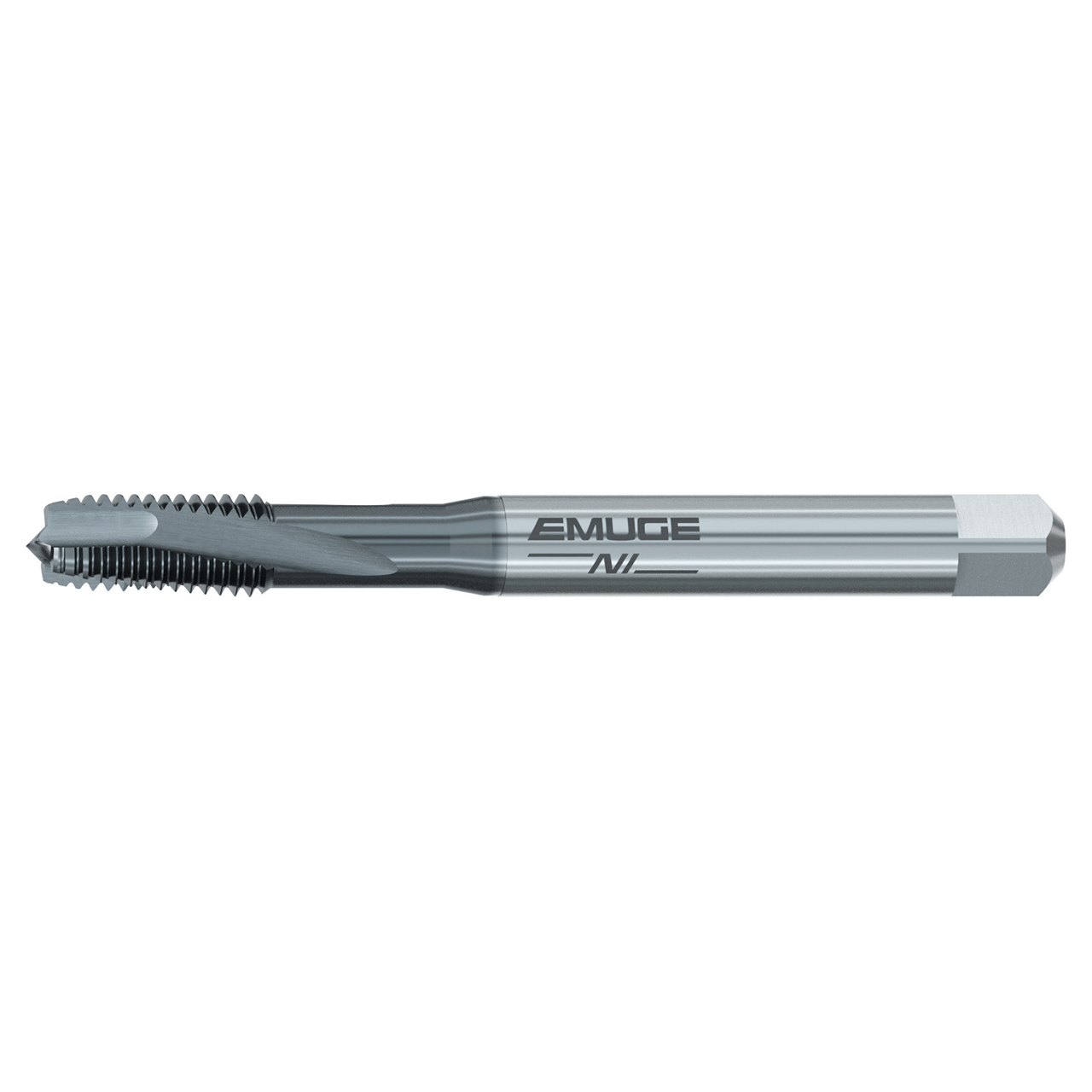

Features:
- Rekord DF-NI semi-bottoming taps with VHC - Variable Helix Correction
- A specially ground "F" relief geometry in the primary cutting zone, that generates a smaller and tightly rolled chip formation
- Bottoming hole applications
- HSSE-PM tool base material for longer tool life
Product Specifications
| Manufacturer Part Number | B438J411.5512 |
| Thread Size | 5/16"-24" |
| Thread Diameter Size (Inch) | 5/16" |
| Thread Standard | UNJF |
| Thread per Inch (TPI) | 24 TPI |
| Tap Square (mm) | 6.20mm |
| Thread Length (mm) | 17.00mm |
| Overall Length (mm) | 90.00mm |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Class of Fit | 3BX |
| Dimensional Standards | DIN / DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Tool Type | EMUGE NI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
5/16-24"
Finish/Coating:
TICN
Flute Direction:
Right Hand
Threads per Inch (TPI):
24
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
