Features:

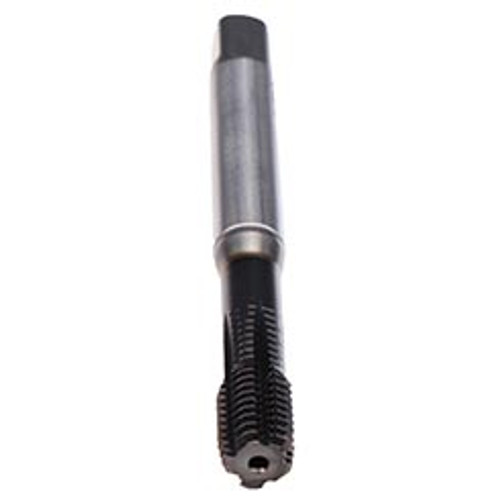

- The InnoForm AL roll form tap is designed for specific applications and materials. This high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations. AL designates tools for aluminum alloys
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 1.25 |
| Size | M 8 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Aluminum Alloys |
| Application | Through & Blind Hole |
| Coolant Fed | Axial |
| Coating/Finish | GLT-8 |
| Material | HSSE-PM |
| Type | Roll Form - InnoForm AL |
| Length Group | DIN Length |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 14 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M8 X 1.25
Thread Limit:
6HX
Chamfer:
2 -3 P
Finish/Coating:
GLT-8
Material:
HSSE-PM
Thread Standard:
M
