Features:

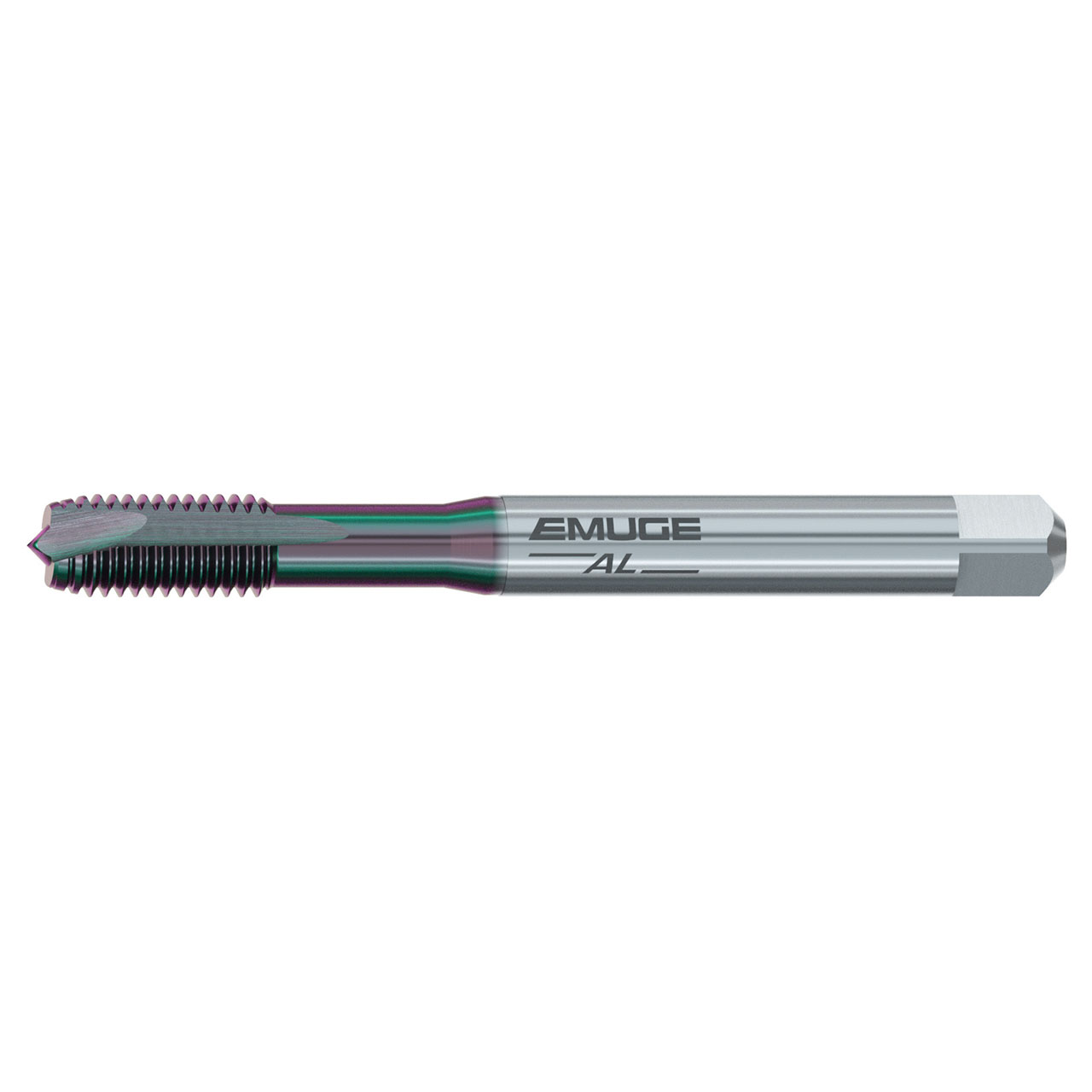

- Rekord B-AL tap is designed for wrought aluminum materials.
- Designed for use in CNC-controlled machines
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU203G00.5034 |
| Thread Size | #1-72 |
| Thread Diameter Size | #1 |
| Thread Per Inch (TPI) | 72 TPI |
| Tap Square (Decimal Inch) | 0.152" |
| Thread Length (Decimal Inch) | 0.512" |
| Overall Length (Decimal Inch) | 1.772" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#1-72
Thread Diameter Size:
#1
Thread Per Inch (TPI):
72 TPI
Overall Length (Inch):
1-44/57"
Overall Length (Decimal Inch):
1.7720"
Overall Length (mm):
45.01mm
Thread Length (Inch):
21/41"
Thread Length (Decimal Inch):
0.5120"
Thread Length (mm):
13.00mm
Number of Flutes:
2
Coating:
GLT-104
