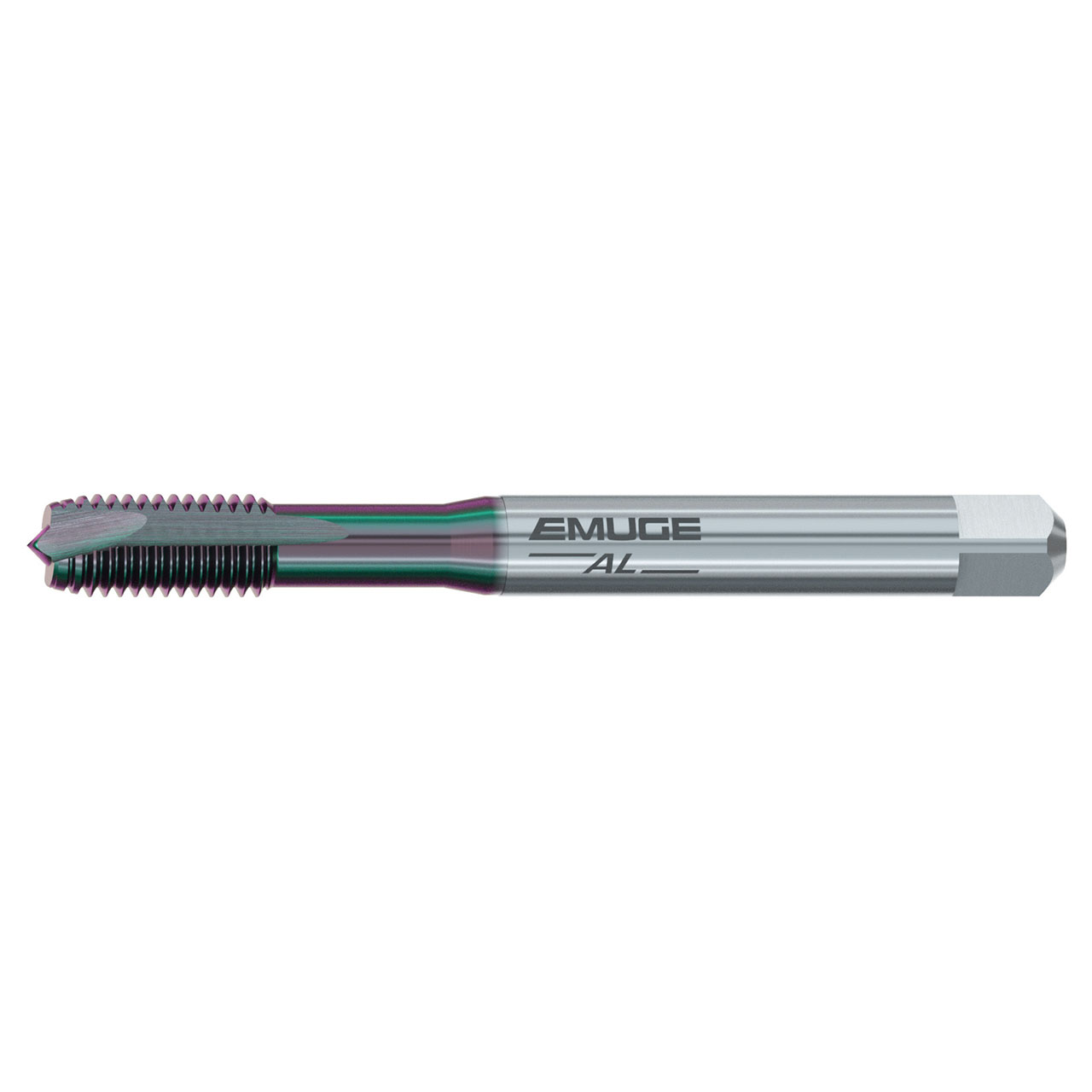

Emuge BU203G10.5617 | 1/4"-20 Thread Size x 0.179" Thread Length x 0.110" Tap Square 2 Flute GLT-104 Coated Spiral Point STI Tap

$80.58
Brand:
Emuge
Thread Size:
1/4-20"
Thread Diameter Size:
1/4"
Thread Per Inch (TPI):
20 TPI
Overall Length (Inch):
3-19/35"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Thread Length (Inch):
17/95"
Thread Length (Decimal Inch):
0.1790"
Thread Length (mm):
4.55mm
Number of Flutes:
2
Coating:
GLT-104
interval quantity:
1
SKU:
18019662
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU203G10.5617 | 1/4"-20 Thread Size x 0.179" Thread Length x 0.110" Tap Square 2 Flute GLT-104 Coated Spiral Point STI Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
  • The fast spiral flute (45 Degree) provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU203G10.5617
Thread Size1/4"-20
Thread Diameter Size1/4"
Thread Per Inch (TPI)20 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.179"
Overall Length (Decimal Inch)3.543"
Length GroupDIN Length
Number of Flutes2
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardSTI-UNC
Thread Tolerance Class3B
Tap Chamfer4 -5 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Point STI Tap
