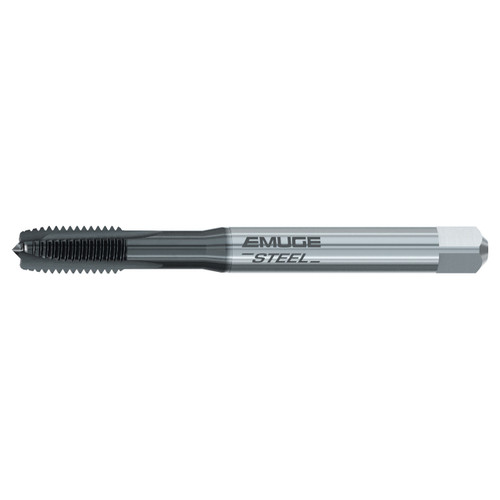

Emuge BU20K560.5009 | 1/4-20" Thread Size x 3.150" OAL 3 Flute GLT-1 Coated Spiral Flute Tap

$72.25
Brand:
Emuge
Thread Size:
1/4-20"
Number of Flutes:
3
Finish/Coating:
GLT-1
Flute Direction:
Left Hand
Threads per Inch (TPI):
20
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
interval quantity:
1
SKU:
15038403
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Features:

  • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials
  • The spiral point ensures optimum chip removal in the feed direction
  • GLT-1 coated for heat and wear resistance as well as added lubricity
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU20K560.5009
Thread Size1/4"-20"
Thread Diameter Size (Inch)1/4"
Thread StandardUNC
Thread per Inch (TPI)20 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.669"
Overall Length (Decimal Inch)3.150"
Shank Machine Side Connection Diameter (Decimal Inch)0.255"
Thread Tolerance Class3B
Tap Chamfer4-5 P
Tap Chamfer FormB
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Cutting Edge MaterialHSSE
CoatingGLT-1
Tool TypeRekord B-Steel-L
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
