Features:

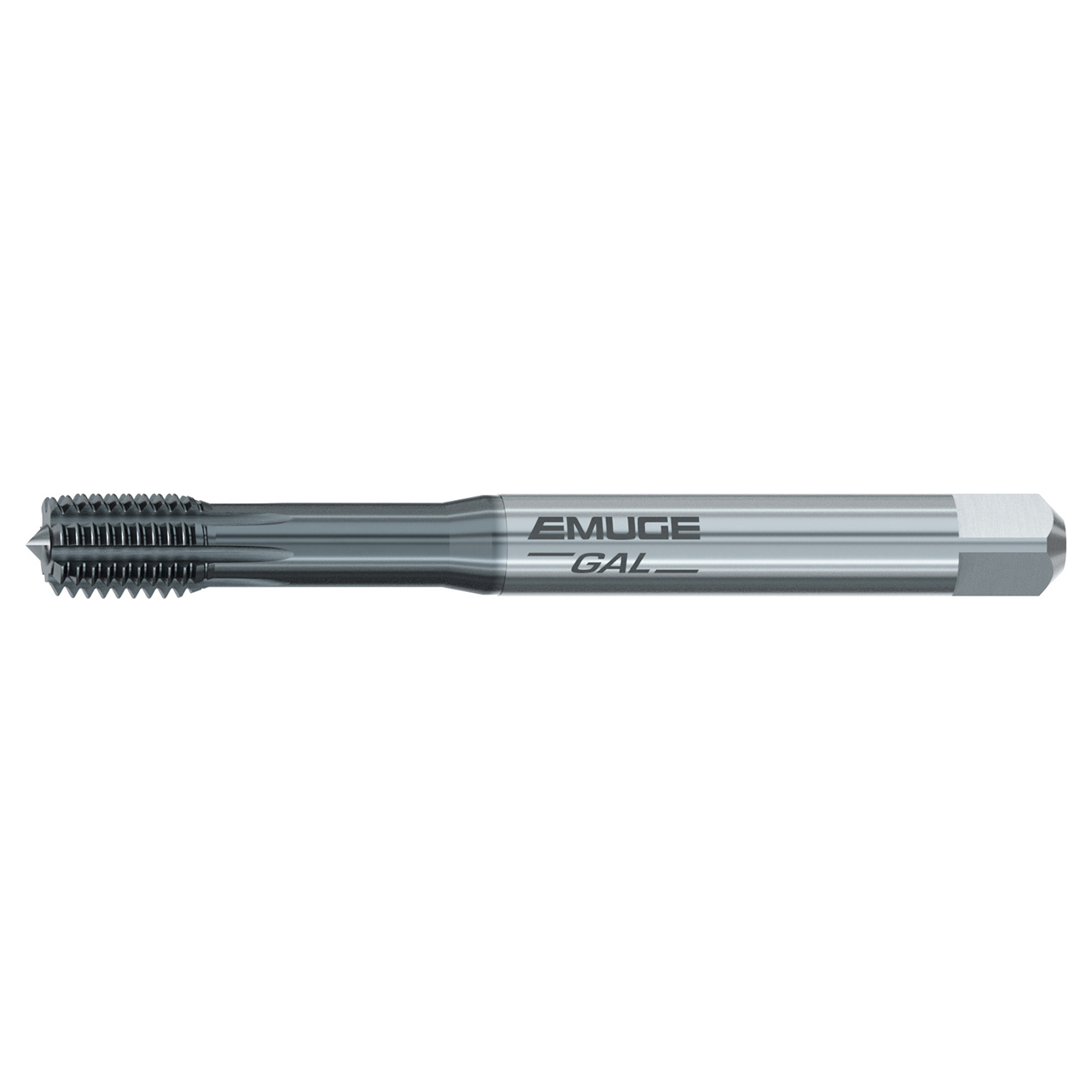

- The InnoForm GAL roll form tap is designed for cast aluminum materials
- Short threaded part and special polygon shape for less torque
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU37Q200.5038 |
| Thread Size | #5-44 |
| Thread Diameter Size | #5 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 44 TPI |
| Tap Square (Decimal Inch) | 0.110" |
| Thread Length (Decimal Inch) | 0.227" |
| Overall Length (Decimal Inch) | 2.205" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.141" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Tool Type | EMUGE GAL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#5-44
Finish/Coating:
TICN
Thread Standard:
UNF
