Features:

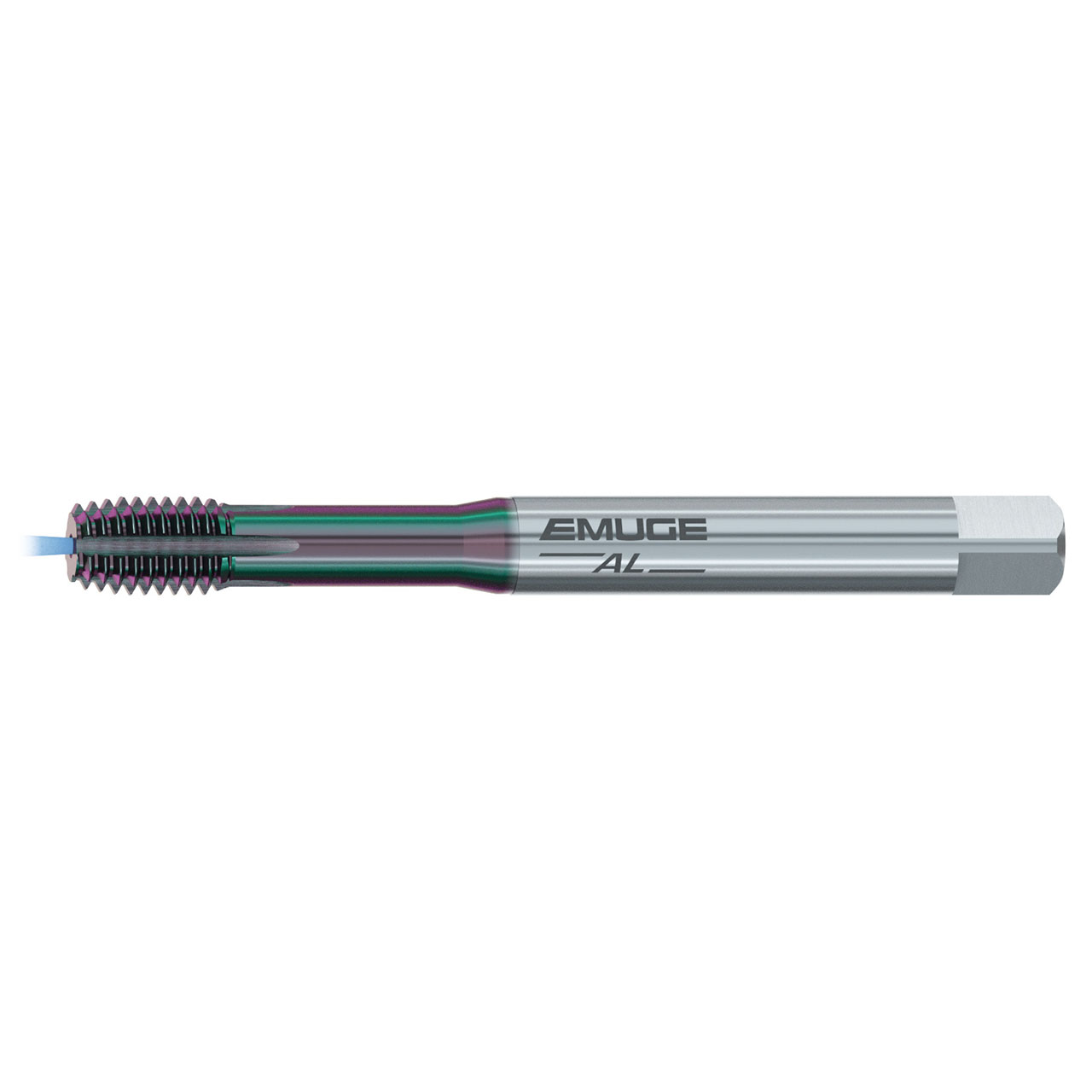

- The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
- Axial coolant fed to maximize chip evacuation and improve thread quality
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU441Q00.5010 |
| Thread Size | 5/16"-18 |
| Thread Diameter Size | 5/16" |
| Thread Per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.238" |
| Thread Length (Decimal Inch) | 0.556" |
| Overall Length (Decimal Inch) | 3.543" |
| Length Group | DIN Length |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNC |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
5/16-18"
Thread Diameter Size:
5/16"
Thread Per Inch (TPI):
18 TPI
Overall Length (Inch):
3-19/35"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Thread Length (Inch):
5/9"
Thread Length (Decimal Inch):
0.5560"
Thread Length (mm):
14.12mm
Coating:
GLT-104
