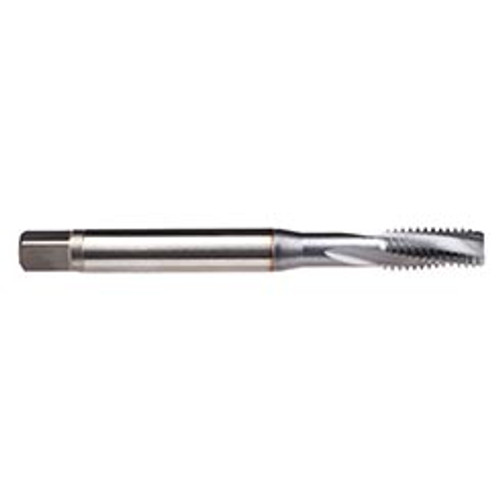

Emuge BU979000.5011 | 3/8-16 - Tap - Slow Helix - Coolant-TICN

$105.17
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
3/8"-16
Thread Limit:
2B
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
TICN
Flute Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
SKU:
15039245
Weight:
0.10 LBS
Shipping:
Free Shipping

Features:

  • Rekord D-VA tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. Best suited for stainless steel, steel alloys & cast aluminum
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch16
Size3/8"
Thread Limit2B
Thread StandardUNC
Applicable MaterialStainless Steel & Steel Alloys
ApplicationBlind Hole
Coolant FedAxial
Coating/FinishTICN
MaterialHSSE
TypeRekord D-VA
Length GroupDIN Length
Number of Flutes3
Helix Angle (Degrees)15 Degree
Shank Diameter (mm)0.381"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)3.937"
Thread Length (mm)0.866"
Flute DirectionRight Hand
