Features:

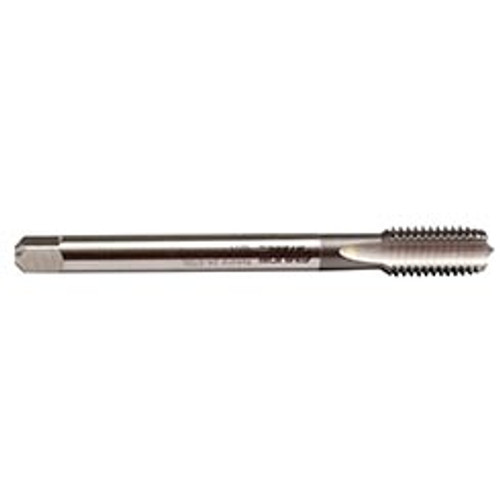

- Rekord A-Steel straight flute Whitworth pipe tap for through or blind hole applications in steel alloys and copper
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 11 |
| Size | 1 |
| Thread Limit | X |
| Thread Standard | Rp (BSPP) |
| Applicable Material | Steel & Cast Aluminum |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord A-Steel |
| Length Group | DIN Length |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 25 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 160 mm |
| Thread Length (mm) | 25 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1-11
Thread Standard:
Rp (BSPP)
Overall Length (Inch):
6-19/64"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160mm
Material:
HSSE
Finish/Coating:
Bright
