Features:

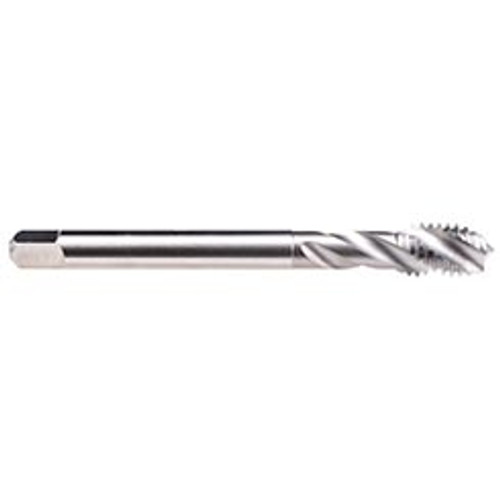

- Enorm - Steel long length Whitworth pipe tap for blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 11 |
| Size | 1-3/8" |
| Thread Standard | G (BSP) |
| Applicable Material | Steel and Long Chipping Alloys |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Enorm Steel |
| Length Group | DIN Length |
| Number of Flutes | 6 |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 36 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 180 mm |
| Thread Length (mm) | 32 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1-3/8"-11
Thread Standard:
G (BSP)
Number of Flutes:
6
Overall Length (Inch):
7-3/32"
Overall Length (Decimal Inch):
7.0866"
Overall Length (mm):
180mm
Material:
HSSE
Finish/Coating:
Bright
