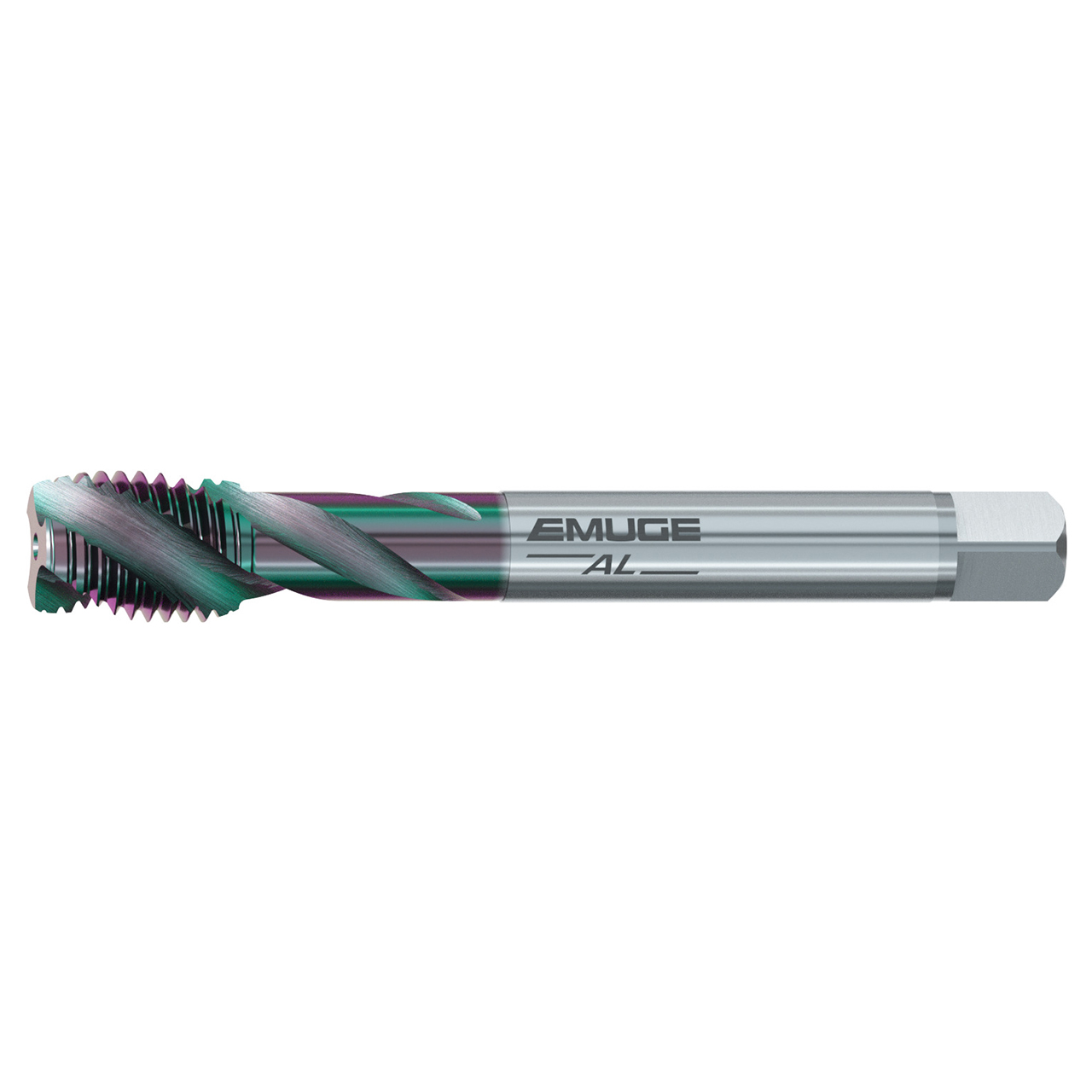

Features:
- The Enorm AL design is typically for blind hole threads in long chipping materials.
- Higher rake angle provides better shearing action for maximum tool life
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU503G00.5050 |
| Thread Size | 3/4"-16 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 16 TPI |
| Tap Square (Decimal Inch) | 0.322" |
| Thread Length (Decimal Inch) | 0.556" |
| Overall Length (Decimal Inch) | 4.331" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | UNF |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
3/4-16"
Thread Diameter Size:
3/4"
Thread Per Inch (TPI):
16 TPI
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
Thread Length (Inch):
5/9"
Thread Length (Decimal Inch):
0.5560"
Thread Length (mm):
14.12mm
Number of Flutes:
2
Coating:
GLT-104
Flute Helix Angle (Degree):
45 Degree
interval quantity:
1
