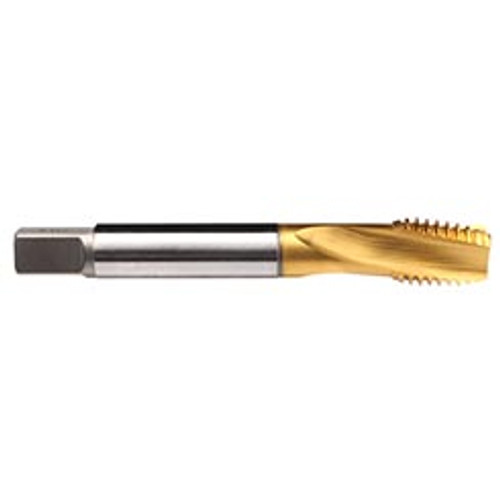

Emuge CU979000.5013 | 1/2-13 - Tap - Slow Helix - Coolant-TICN

$138.21
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/2"-13
Thread Limit:
2B
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
TICN
Flute Direction:
Right Hand
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
SKU:
15040180
Weight:
0.12 LBS
Shipping:
Free Shipping

Features:

  • Rekord D-VA tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. Best suited for stainless steel, steel alloys & cast aluminum
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch13
Size1/2"
Thread Limit2B
Thread StandardUNC
Applicable MaterialStainless Steel & Steel Alloys
ApplicationBlind Hole
Coolant FedAxial
Coating/FinishTICN
MaterialHSSE
TypeRekord D-VA
Length GroupDIN Length
Number of Flutes3
Helix Angle (Degrees)15 Degree
Shank Diameter (mm)0.367"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)4.331"
Thread Length (mm)0.984"
Flute DirectionRight Hand
